1-6609212-5
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port
廠商型號:
1-6609212-5
芯天下內部編號:
35-1-6609212-5
生產廠商:
te connectivity / corcom
描述:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port
產品類別:
Interconnect|Connector Telephone and Telecom

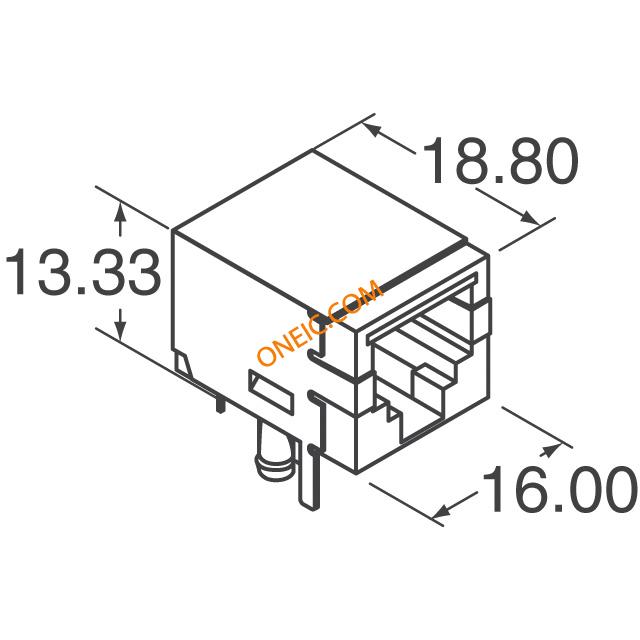

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | F |
| Pitch | 2.54 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Bulk |
| Tab Direction | Down |
| Shielding | Shielded |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Termination | Solder |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Bulk |
| Number of Ports | 1 |
| LED Color | Does Not Contain LED |
| Features | Board Lock, Filter, Panel Stops |
| Orientation | 90° Angle (Right) |
| Contact Finish Thickness | 50μin (1.27μm) |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Contact Material | Phosphor Bronze |
| rohs | Lead free / RoHS Compliant |
| 連接器類型 | 模塊化插孔, 母座 |
| 系列 | 16609212 |
| 線路數目 | 8 |
| 安裝類型 | 印刷電路板安裝 |
| 屏蔽類型 | 屏蔽雙絞線 (STP) |
| 觸點電鍍 | 金 |
| 寬度 | 17.78mm |
| 觸點材料 | 磷銅 |
| 深度 | 18.92mm |
| 方向 | 直角 |
| 長度 | 13.34mm |
| 安裝方式 | 印刷電路板 |
| 裝載的端子數量 | 8 |
| 屏蔽種類 | 板和電纜接地 |
| Type of Inductor | Block |
| Ground Option | Board & Cable |
| 工作溫度范圍 | 130°C |
| Input Type | RJ45 Connector |
| 濾波器類型 | 信號 |
| Filtered | Yes |
| 輸出類型 | PCB 安裝 |
| Level Of Filtering | Inductor Only |
