109159002101116
Conn Board to Board PL 2 POS 3mm Solder RA SMD T/R
廠商型號:
109159002101116
芯天下內部編號:
10-109159002101116
生產廠商:
avx / elco
描述:
Conn Board to Board PL 2 POS 3mm Solder RA SMD T/R
產品類別:
Interconnect|Connector Headers and PCB Receptacles

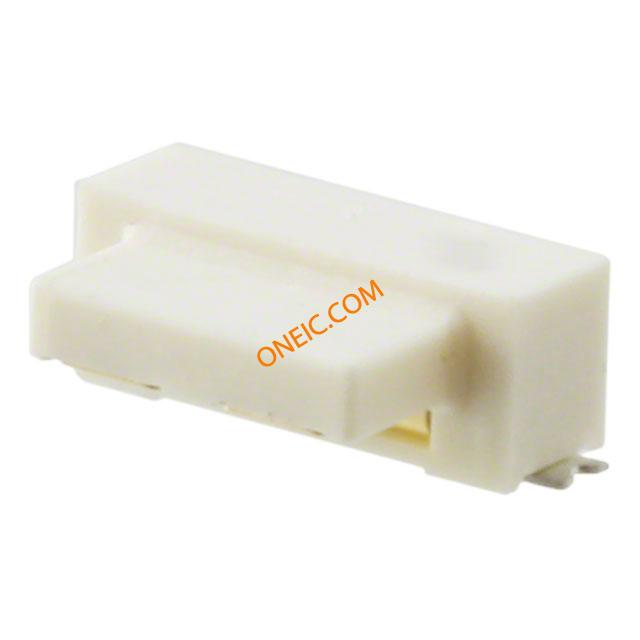

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Board to Board |
| Number of Rows | 1 |
| Number of Contacts | 2 |
| Gender | PL |
| Contact Plating | Gold Over Nickel |
| Termination Method | Solder |
| Standard Package | Tape & Reel |
| Packaging | Tape and Reel |
| Product Length | 8.95 |
| EU RoHS | Compliant |
| Product Depth | 5.2 |
| Mounting | Surface Mount |
| Body Orientation | Right Angle |
| Maximum Voltage Rating | 125VAC |
| Product Height | 3 |
| Housing Material | Nylon 46 |
| Pitch | 3 |
| Housing Color | White |
| Maximum Current Rating | 5/Contact |
| Contact Material | Copper Alloy |
| Style | Board to Board |
| Features | Solder Retention |
| Mounting Type | Surface Mount, Right Angle |
| Contact Finish | Gold |
| Number of Positions | 2 |
| Pitch | 0.118" (3.00mm) |
| Termination | Solder |
| Other Names | 478-5673-2 |
| rohs | Lead free / RoHS Compliant |
| Series | :10-9159 |
| Pitch Spacing | :3mm |
| No. of Rows | :1 |
| No. of Contacts | :2 |
| Contact Termination | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Current Rating | :5A |
| Flammability Rating | :UL94VO |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-40°C |
| Voltage Rating V AC | :125V |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Maximum current | 5A |
| Multiplicity | 1 |
| Connector type | male |
| Number of pins | 2 |
| Gross weight | 0.47 g |
| Operating temperature | -40...125°C |
| Connectors application | LED Light |
| Rated voltage | 125V AC |
| Connector series | 9159 |
| Contacts pitch | 3mm |
| Collective package [pcs] | 1 |
| spg | 1 |
