2013595-1
Conn Modular Plug PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e
廠商型號:
2013595-1
芯天下內部編號:
35-2013595-1
生產廠商:
te connectivity / amp
描述:
Conn Modular Plug PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e
產品類別:
Interconnect|Connector Telephone and Telecom
客戶編號:
規格書:
查看PDF

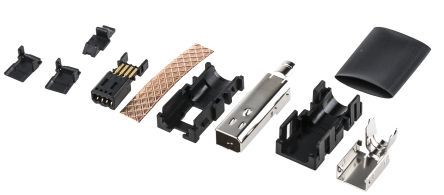

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Modular Plug |
| Gender | PL |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Ratings | Cat5e |
| Current Rating | 0.5A |
| Features | Mini I/O, Backshell, Vibration Resistant |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Voltage Rating | 30V |
| Color | Black |
| Cable Type | Round Cable, Stranded Wires |
| Packaging | Bulk |
| Contact Finish | Gold |
| Housing Material | Thermoplastic, Glass Filled |
| Wire Gauge | 22 AWG |
| Length | 1.300" (33.02mm) |
| Termination | Solder |
| Shielding | Shielded |
| Contact Finish Thickness | 19.7μin (0.50μm) |
| Other Names | 20135951 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Mounting Type | Cable Mount |
| Number of Contacts | 8 |
| Mounting Style | Cable |
| Product | Kits |
| Product Category | I/O Connectors |
| Operating Temperature Range | - 40 C to + 70 C |
| Termination Style | Solder |
| Number of Positions / Contacts | 8 |
| Flammability Rating | UL 94 V-0 |
| Contact Plating | Gold |
| Pitch | 0.635 mm |
| RoHS | RoHS Compliant |
| Connector Type | :Wire to Board |
| Series | :- |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| Contact Termination | :Solder |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
