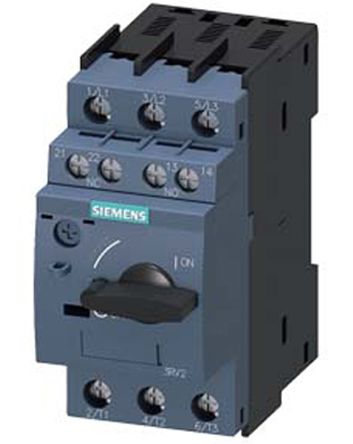

3RV2011-1DA15
CIRCUIT-BREAKER SZ S00, FOR MOTOR PROTEC
廠商型號:
3RV2011-1DA15
芯天下內部編號:
946-3RV2011-1DA15
生產廠商:
Siemens
描述:
CIRCUIT-BREAKER SZ S00, FOR MOTOR PROTEC
產品類別:
Automation & Control Gear|Circuit Protection & Circuit Breakers|MCBs
客戶編號:
瀏覽次數:
3
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| 使用于 | 三相電動機 |
| 復位方法 | 手動 |
| 寬度 | 96.9mm |
| 尺寸 | 45 x 97 x 96.9 mm |
| 接端類型 | 螺釘 |
| 斷開能力 | 100 kA @ 400 V 交流 |
| 極數 | 3 |
| 深度 | 97mm |
| 電流范圍 | 2.2 → 3.2 A |
| 系列 | SRV2 |
| 范圍 | SIRIUS |
| 長度 | 45mm |
| 額定電壓 | 690 V 交流 |
