43202-6104

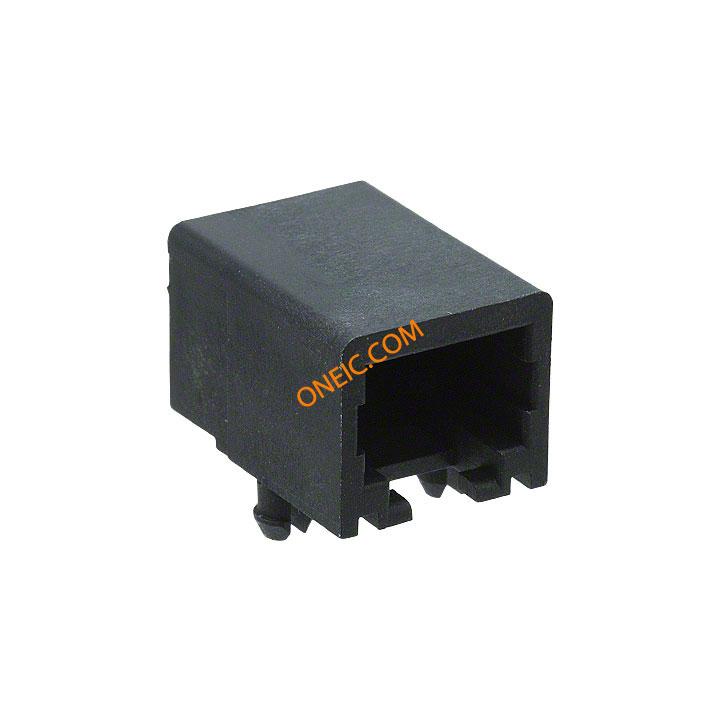

Conn RJ-11 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3/Cat 4

Thumbnail 43202-6104 Thumbnail 43202-6104
廠商型號: 43202-6104
芯天下內部編號: 256-43202-6104
生產廠商:
molex molex
描述: Conn RJ-11 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3/Cat 4
產品類別: Interconnect|Connector Telephone and Telecom
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。

庫存與訂購

庫存: 0
庫存獲取中,，請稍候....

產品參數

參數類型 參數值
Type RJ-11
Gender F
Number of Contacts 6
Pitch 2.54 mm
Termination Method Solder
Mounting Through Hole
Body Orientation Right Angle
Standard Package Trays
Ratings Cat4
Tab Direction Down
Shielding Unshielded
Mounting Type Through Hole
Number of Positions/Contacts 6p4c (RJ11, RJ14)
Number of Rows 1
Termination Solder
Connector Type Jack
Contact Finish Gold
Packaging Tray
Number of Ports 1
Operating Temperature -40°C ~ 85°C
LED Color Does Not Contain LED
Features Board Lock
Orientation 90° Angle (Right)
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polyamide (PA), Nylon, Glass Filled
Contact Material Phosphor Bronze
rohs Lead free / RoHS Compliant
Factory Pack Quantity 2000
Current Rating 1.5 A
Termination Style Through Hole
Part # Aliases 0432026104
Product Category Modular Connectors / Ethernet Connectors
Voltage Rating 125 V
Number of Positions / Contacts 6
Contact Plating Gold
Flammability Rating UL 94 V-0
Operating Temperature Range - 40 C to + 85 C
RoHS RoHS Compliant
Mounting Angle Right
USOC Codes RJ11
Color Black
Series 43202
Performance Category Cat 3, Cat 4
