5-569530-3
Conn Telephone/Telecom PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3
廠商型號:
5-569530-3
芯天下內部編號:
35-5-569530-3
生產廠商:
te connectivity / amp
描述:
Conn Telephone/Telecom PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3
產品類別:
Interconnect|Connector Telephone and Telecom

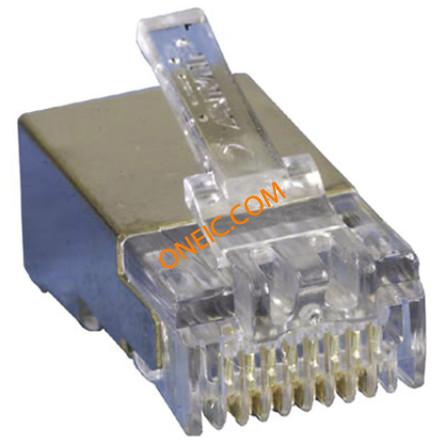

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Telephone/Telecom |
| Gender | PL |
| Pitch | 1.02 mm |
| Termination Method | Crimp |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Ratings | Cat5 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Color | Translucent - Clear |
| Shield Material | Copper Alloy |
| Cable Type | Round Cable, Solid Wires |
| Packaging | Bulk |
| Contact Finish | Gold |
| Housing Material | Polycarbonate (PC) |
| Wire Gauge | 24-26 AWG |
| Length | 0.915" (23.24mm) |
| Termination | IDC |
| Shielding | Shielded |
| Contact Finish Thickness | 50μin (1.27μm) |
| Contact Material | Phosphor Bronze |
| rohs | Lead free / RoHS Compliant |
| Connector Type | Modular Plug |
| Contact Plating | Gold over Nickel |
| LAN Category | Cat3 |
| Number of Ways | 8C |
| Orientation | Straight |
| Factory Pack Quantity | 100 |
| Product Category | Modular Connectors / Ethernet Connectors |
| USOC Codes | RJ45 |
| Voltage Rating | 150 V |
| Performance Category | Cat 3 |
| Number of Ports | 1 |
| Current Rating | 1.5 A |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 60C |
| Positions Loaded | 8 |
| Current Rating (Max) | 1.5/Contact A |
| Mounting Style | Cable |
| Number of Contacts | 8 POS |
| Product Length (mm) | 11.79 mm |
| Product Depth (mm) | 23.25 mm |
| Product Height (mm) | 11.19 mm |
| Voltage Rating Max | 150VAC |
| Pitch (mm) | 1.02 mm |
| Category Number | Cat 3 |
| Family | 569530 |
| Housing Color | Clear |
| Series | :- |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| Contact Termination | :IDC / IDT |
| Weight (kg) | 0.03 |
| Tariff No. | 85369010 |
| AgencyApprovals | UL,CSA |
| Angle | Straight |
| CableType | Round |
| ContactPlating | GoldoverNickel |
| Current,Rating | 1.5A |
| Diameter,Conductor | 0.029to0.039in. |
| FlammabilityRating | UL94V-2 |
| Material,Contact | PhosphorBronze |
| Material,Housing | Polycarbonate |
| NumberofContacts | 8 |
| Performance | Cat3 |
| PrimaryType | Modular |
| SpecialFeatures | Shielded |
| Specification | RJ45 |
| Voltage,Rating | 150VAC |
