5-6605758-1
モジュラーコネクタ/Ethernetコネクタ 1X1 7N2 G/Y LED MAG45
廠商型號:
5-6605758-1
芯天下內部編號:
35-5-6605758-1
生產廠商:
TE Connectivity / AMP
描述:
モジュラーコネクタ/Ethernetコネクタ 1X1 7N2 G/Y LED MAG45
產品類別:
Connectors|Network & Telecom Connectors|RJ45 Connectors

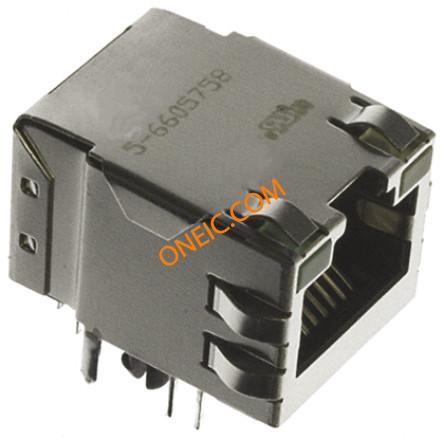

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Latch Orientation | Inverted - Latch Up |
| Insulator | Without |
| Temperature Rating | Office / Premises (0 ?oC to +70 ?oC) |
| Magnetic Circuit | 726 |
| Housing Material | Thermoplastic |
| Shield Panel Ground Tabs | With |
| Right LED Color (Position #2) | Yellow - 250 ohm resistor |
| Bottom Shield | Without |
| PCB Mount Style | Thru Hole |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240?°C, Wave solder capable to 260?°C, Wave solder c |
| Brand | Transpower |
| Decoupling Capacitor | 2KV |
| Component Type | Single Port |
| Shielded | Yes |
| Signal Routing Type | Auto MDI/MDIX |
| Shield Plating | Semi-Bright Nickel (Pre-plated) |
| Housing Flammability Rating | UL 94V-0 |
| LED | With |
| Jack Configuration | 1 x 1 |
| Impedance (Ω) | 100 |
| Shield Material | Brass |
| Bottom Panel Ground Tab | Without |
| Signal Lead Quantity | 8 |
| Rear PCB Ground Tab | Without |
| Turns Ratio | 1:1 |
| RoHSELV Compliance History | Always was RoHS compliant |
| Left LED Color (Position #1) | Green - 250 ohm resistor |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Depth | 21.59mm |
| Gender | Female |
| Length | 18.41mm |
| Mounting Type | Through Hole |
| Orientation | Right Angle |
| rohs | Compliant |
| Connector Type | :RJ45 |
| Series | :N |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| LAN Category | :- |
| Contact Termination | :Through Hole Right Angle |
| Body Plating | :Semi-Bright Nickel |
| Flammability Rating | :UL 94V-0 |
| Material | :Thermoplastic Polyester |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Voltage Rating V AC | :150V |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
