69255-001LF

Conn Modular Jack F 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Tube Cat 3

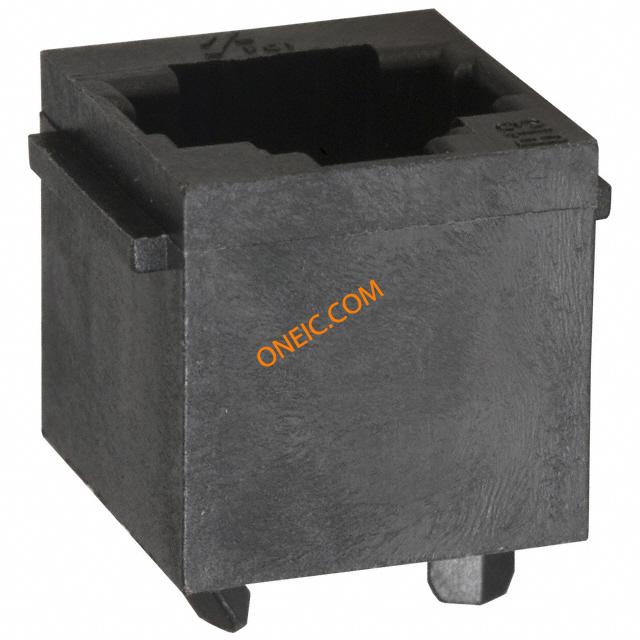

Thumbnail 69255-001LF Thumbnail 69255-001LF Thumbnail 69255-001LF
廠商型號: 69255-001LF
芯天下內部編號: 137-69255-001LF
生產廠商:
fci sa fci sa
描述: Conn Modular Jack F 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Tube Cat 3
產品類別: Interconnect|Connector Telephone and Telecom
客戶編號:
規格書: 查看PDF
瀏覽次數: 6

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Modular Jack
Gender F
Pitch 2.54 mm
Termination Method Solder
Mounting Through Hole
Body Orientation Straight
Standard Package Rail / Tube
Maximum Current Rating 1/Contact
Housing Material Polybutylene Terephthalate
Number of Loaded Positions 8
EU RoHS Compliant
Maximum Voltage Rating 1000VDC|1000VAC
Housing Color Black
Contact Plating GXT
Product Length 17.78
Category Number Cat 3
Number of Ports 1
Pitch 2.54
Maximum Contact Resistance 20
Product Depth 16.38
Product Height 15.62
Packaging Tube
Number of Contacts 8
Contact Material Copper Alloy
Unit Pack 1800
MOQ 3600
Ratings Cat3
Tab Direction User Selectable
Shielding Unshielded
Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Rows 1
Termination Solder
Connector Type Jack
Contact Finish Gold
Operating Temperature -65°C ~ 125°C
LED Color Does Not Contain LED
Features Board Guide, Panel Stops
Orientation Vertical
Contact Finish Thickness 5μin (0.127μm)
rohs Lead free / RoHS Compliant
Factory Pack Quantity 1800
Current Rating 1 A
Termination Style Through Hole
Insulation Resistance 500 MOhms
Product Modular Jacks
Product Category Modular Connectors / Ethernet Connectors
Number of Positions / Contacts 8
Flammability Rating UL 94 V-0
Voltage Rating 1 kV
Number of Positions / Contacts per Port 8
RoHS RoHS Compliant
Mounting Angle Vertical
Color Black
Series 69255
Performance Category Cat 3
No. of Contacts :8
No. of Positions :8
No. of Ports :1
LAN Category :Cat3
Contact Termination :Through Hole Vertical
SVHC :No SVHC (20-Jun-2013)
Approval Bodies :CSA, UL
Colour :Black
Contact Resistance :20mohm
DC Current Max :2A
Material :Thermoplastic Resin
No. of Mating Cycles :250
Operating Frequency Max :60Hz
Withstand Voltage :1kV
Working Voltage :1000V
Weight (kg) 0.002
Tariff No. 85369010
