7010.1780.12
Fuse Subminiature 0.125A 250V Fast 2-Pin Axial Through Hole Bag
廠商型號:
7010.1780.12
芯天下內部編號:
289-7010-1780-12
生產廠商:
schurter
描述:
Fuse Subminiature 0.125A 250V Fast 2-Pin Axial Through Hole Bag
產品類別:
Circuit Protection|Fuses

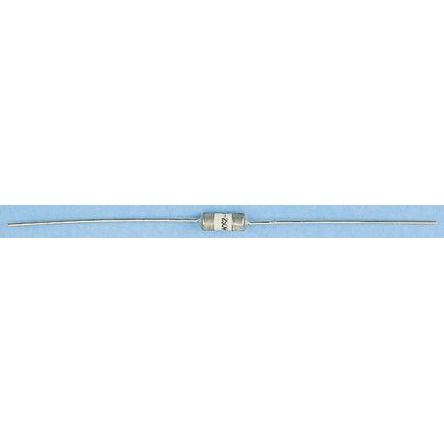

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Subminiature |
| Current Rating | 0.125 A |
| Minimum Operating Temperature | -40 °C |
| Acting | Fast |
| Maximum DC Voltage Rating | 125 V |
| Standard Package | Bulk |
| Product Type | PCB Mount Fuse |
| Body Style | Leaded Fuses |
| Voltage Rating AC | 125 V |
| Voltage Rating DC | 125 V |
| Mounting Style | Through Hole |
| Termination Style | Axial |
| Fuse Type | Fast Blow |
| Fuse Size / Group | 3.8 mm x 10 mm |
| Series | 172593 |
| Product | Specialty Fuses |
| Factory Pack Quantity | 100 |
| Breaking Capacity @ Rated Voltage | 50A |
| Mounting Type | Through Hole |
| Voltage Rating - AC | 250V |
| Approvals | cULus |
| Packaging | Bulk |
| Size / Dimension | 0.150" Dia x 0.394" L (3.80mm x 10.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage Rating - DC | 250V |
| Response Time | Fast |
| Melting I2t | 0.0013 |
| Package/Case | Cartridge, Non-Standard (Axial) |
| rohs | Lead free / RoHS Compliant |
| Body Diameter | 3.8mm |
| Body Height | 10mm |
| Body Material | Ceramic |
| Fuse Speed | F |
| Lead Orientation | Axial |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 125 V ac, 250 V dc |
| Wire Diameter | 0.7mm |
| Wire Length | 33mm |
| Unit Weight | 0.176370 oz |
| 主體材料 | 陶瓷 |
| 最高工作溫度 | +85°C |
| 熔斷器速度 | F |
| 最低工作溫度 | -40°C |
| 額定電流 | 125 mA |
| 主體直徑 | 4.05mm |
| 主體高度 | 10mm |
| 額定電壓 | 125 V 交流,，250 V 直流 |
| 斷路能力 于最大電壓 R | 50 A @ 250 V 交流/直流 |
| 電線直徑 | 0.7mm |
| 引線方向 | 軸向 |
| 電線長度 | 33mm |
