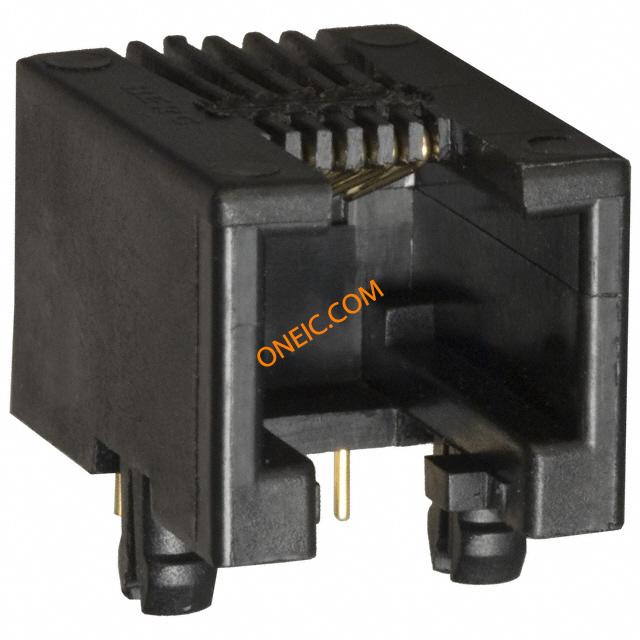

87180-066LF
Conn Modular Jack F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Cat 3
廠商型號:
87180-066LF
芯天下內部編號:
137-87180-066LF
生產廠商:
fci sa
描述:
Conn Modular Jack F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Cat 3
產品類別:
Interconnect|Connector Telephone and Telecom

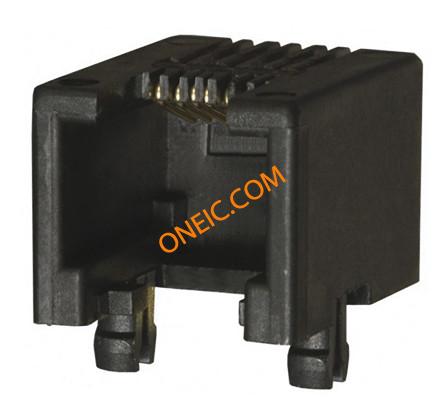

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Modular Jack |
| Gender | F |
| Pitch | 2.54 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Rail / Tube |
| Maximum Current Rating | 1/Contact |
| Housing Material | Nylon 6/6 |
| Number of Loaded Positions | 6 |
| EU RoHS | Compliant |
| Maximum Voltage Rating | 1000VDC|1000VAC |
| Housing Color | Black |
| Contact Plating | GXT |
| Product Length | 13.2 |
| Category Number | Cat 3 |
| Number of Ports | 1 |
| Pitch | 2.54 |
| Maximum Contact Resistance | 20 |
| Product Depth | 18 |
| Product Height | 11.5 |
| Packaging | Tube |
| Number of Contacts | 6 |
| Contact Material | Phosphor Bronze Alloy |
| Matchcode | 87180066LF |
| Oper.temperatur | THT°C |
| No.of contacts | 06 |
| Unit Pack | 43 |
| Standard Leadtime | 8 weeks |
| MOQ | 43 |
| Housing materia | 2.54 |
| Shielded | -65 TO 125 |
| Contact plating | SOLDER |
| Series | 30μin GXT |
| Automotive | NO |
| Leadfree Defin. | RoHS-conform |
| Ratings | Cat3 |
| Tab Direction | Down |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Rows | 1 |
| Termination | Solder |
| Connector Type | Jack |
| Contact Finish | Gold |
| Operating Temperature | -65°C ~ 125°C |
| LED Color | Does Not Contain LED |
| Features | Board Lock |
| Orientation | 90° Angle (Right) |
| Contact Finish Thickness | 5μin (0.127μm) |
| rohs | Lead free / RoHS Compliant |
| Depth | 18mm |
| LAN Category | Cat3 |
| Length | 11.5mm |
| Number of Ways | 6P6C |
| Width | 13.2mm |
| Factory Pack Quantity | 2580 |
| Current Rating | 1 A |
| Termination Style | Through Hole |
| Insulation Resistance | 500 MOhms |
| Product | Modular Jacks |
| Product Category | Modular Connectors / Ethernet Connectors |
| Number of Positions / Contacts | 6 |
| Flammability Rating | UL 94 V-0 |
| Voltage Rating | 1 kV |
| Number of Positions / Contacts per Port | 6 |
| RoHS | RoHS Compliant |
| Mounting Angle | Right |
| Color | Black |
| Performance Category | Cat 3 |
| No. of Contacts | :6 |
| No. of Positions | :6 |
| No. of Ports | :1 |
| Contact Termination | :Through Hole Right Angle |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL |
| Colour | :Black |
| Contact Resistance | :20mohm |
| DC Current Max | :2A |
| Material | :Thermoplastic Resin |
| No. of Mating Cycles | :250 |
| Operating Frequency Max | :60Hz |
| Withstand Voltage | :1kV |
| Working Voltage | :1000V |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
