94910-008MLF

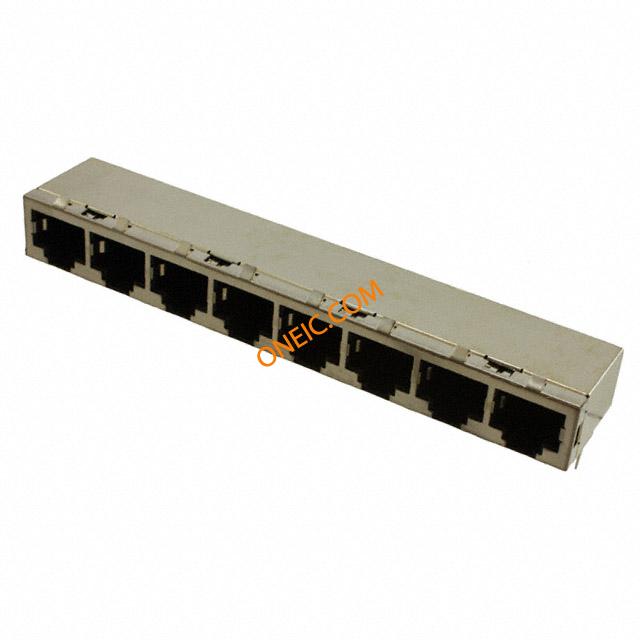

Conn Modular Jack F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Cat 3
廠商型號:
94910-008MLF
芯天下內部編號:
137-94910-008MLF
生產廠商:
fci sa
描述:
Conn Modular Jack F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Cat 3
產品類別:
Interconnect|Connector Telephone and Telecom
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Modular Jack |
| Gender | F |
| Pitch | 2.54 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Rail / Tube |
| Maximum Current Rating | 1/Contact |
| Product Length | 114.8 |
| EU RoHS | Compliant |
| Product Depth | 21.7 |
| Category Number | Cat 3 |
| Maximum Voltage Rating | 1500VDC|1500VAC |
| Product Height | 13.63 |
| Housing Material | Brass Alloy |
| Number of Ports | 8 |
| Number of Contacts | 64 |
| Pitch | 2.54 |
| Contact Plating | GXT Over Nickel |
| Maximum Contact Resistance | 20 |
| Contact Material | Phosphor Bronze Alloy |
| Number of Loaded Positions | 64 |
| Matchcode | 94910008MLF |
| Oper.temperatur | THT°C |
| No.of contacts | 08 |
| Unit Pack | 5 |
| Standard Leadtime | 11 weeks |
| MOQ | 2000 |
| Leadfree Defin. | RoHS-conform |
| Contact plating | SOLDER |
| Series | GOLD |
| Automotive | NO |
| Ratings | Cat3 |
| Tab Direction | Down |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Termination | Solder |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Bulk |
| Operating Temperature | -65°C ~ 125°C |
| LED Color | Does Not Contain LED |
| Features | Board Lock |
| Orientation | 90° Angle (Right) |
| Contact Finish Thickness | 5μin (0.127μm) |
| rohs | Lead free / RoHS Compliant |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :8 |
| LAN Category | :Cat3 |
| Contact Termination | :Through Hole Right Angle |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL |
| Body Plating | :Gold |
| Colour | :Black |
| Contact Resistance | :20mohm |
| DC Current Max | :2A |
| Flammability Rating | :UL94V-0 |
| Insulation Resistance | :500Mohm |
| Material | :Thermoplastic Resin |
| No. of Mating Cycles | :250 |
| Standard | :EIA/TIA 568A |
| Withstand Voltage | :1kV |
| Working Voltage | :1kV |
| Weight (kg) | 0.0039 |
| Tariff No. | 85369010 |
