E61-10K
Basic / Snap Action Switches SPDT 5A SS TERM
廠商型號:
E61-10K
芯天下內部編號:
62-E61-10K
生產廠商:
Cherry Electrical
描述:
Basic / Snap Action Switches SPDT 5A SS TERM
產品類別:
Switches|Snap Action, Limit Switches|E

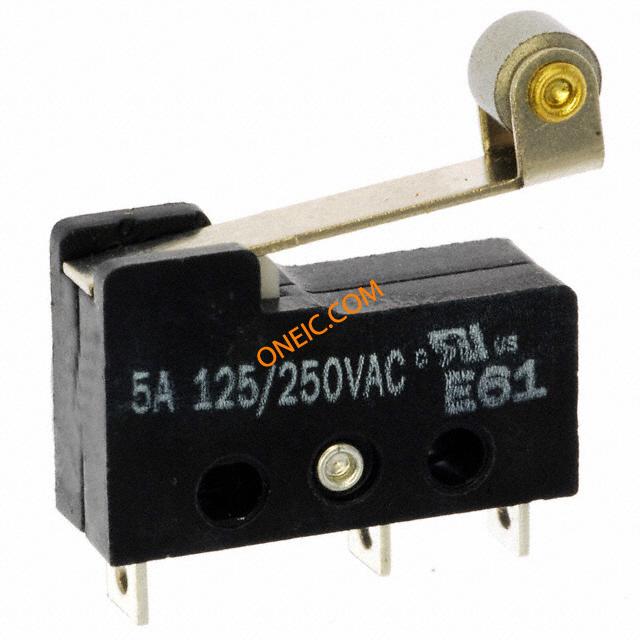

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Subcategory | Switch Snap Action |
| Lead Time | 126 Days |
| Packaging | Bulk |
| Differential Travel | 0.015" (0.38mm) |
| Switch Function | On-Mom |
| Current Rating | 5A (AC/DC) |
| Operating Force, Torque | 30gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Termination Style | Solder Lug |
| Electrical Life | 6,000 Cycles |
| Operating Position | 0.571" (14.5mm) |
| Overtravel | 0.019" (0.48mm) |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Type | Lever, Roller |
| Standard Package | 1,155 |
| Voltage Rating - DC | 30V |
| Pretravel | 0.114" (2.9mm) |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 250 V |
| Product Category | Basic / Snap Action Switches |
| Mounting | Panel |
| Contact Form | SPDT |
| Operating Force | 0.3 N |
| Series | E61 |
| Actuator | Roller Lever |
| Part # Aliases | 0E6110K0 |
| Type | Miniature |
| RoHS | RoHS Compliant |
