L829-1X1T-91
Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 10 Terminal 1 Port Tray
廠商型號:
L829-1X1T-91
芯天下內部編號:
13-L829-1X1T-91
生產廠商:
bel
描述:
Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 10 Terminal 1 Port Tray
產品類別:
Interconnect|Connector Telephone and Telecom

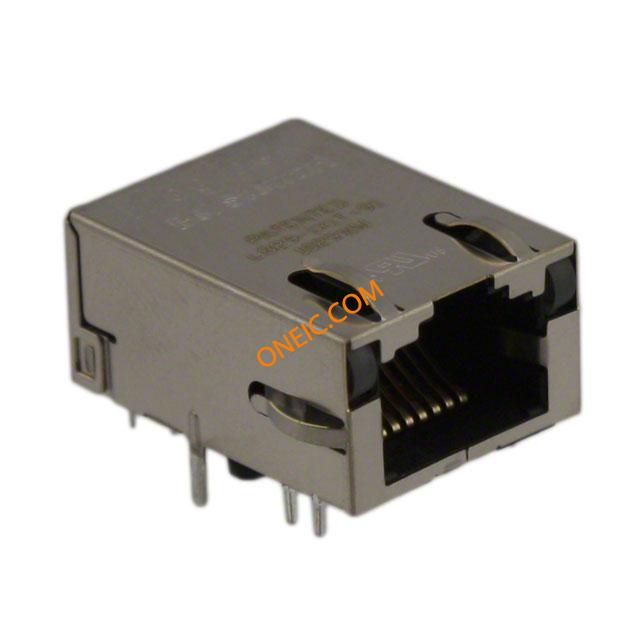

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | F |
| Number of Contacts | 8 |
| Pitch | 2.03 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Trays |
| Number of Rows | 1 |
| Tab Direction | Up |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Material | Copper Alloy |
| Features | Board Guide |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Packaging | Tray |
| Applications | 10/100 Base-T, AutoMDIX |
| LED Color | Green, Orange - Yellow |
| Height Above Board | 0.445" (11.30mm) |
| Number of Cores per Jack | 4 |
| Termination | Solder |
| Contact Finish Thickness | 30μin (0.76μm) |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| rohs | Lead free / RoHS Compliant |
