MC19030001
廠商型號:
MC19030001
芯天下內部編號:
1931-MC19030001
生產廠商:
MULTICOMP
描述:
產品類別:
Optoelectronics & Displays|Indicators|LED Panel Mount Indicators

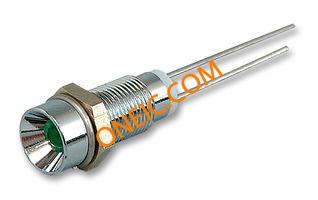

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting Hole Dia | :6mm |
| LED Colour | :Green |
| Forward Current If | :20mA |
| Forward Voltage | :2.6V |
| Luminous Intensity | :34mcd |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CE |
| Bezel Depth | :3mm |
| Bezel Diameter | :7mm |
| Bulb Size | :3mm |
| Current If Luminous Intensity | :20mA |
| External Diameter | :7mm |
| Fixing Hole Diameter | :6mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :2.6V |
| LED / Lamp Size | :3mm |
| Length Behind Bezel | :13mm |
| Luminous Intensity Typ | :34mcd |
| Mounting Type | :Panel |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Range | :-55°C to +70°C |
| Peak Forward Current | :45mA |
| Peak Wavelength | :565nm |
| Terminal Type | :Wire Ended |
| Voltage Vf Min | :2V |
| Voltage Vf Typ | :2.6V |
| Wavelength Typ | :565nm |
| Weight (kg) | 0.004 |
| Tariff No. | 85414010 |
文檔與媒體
| 資源類型 | 鏈接 |
|---|---|
| 數據表 |
