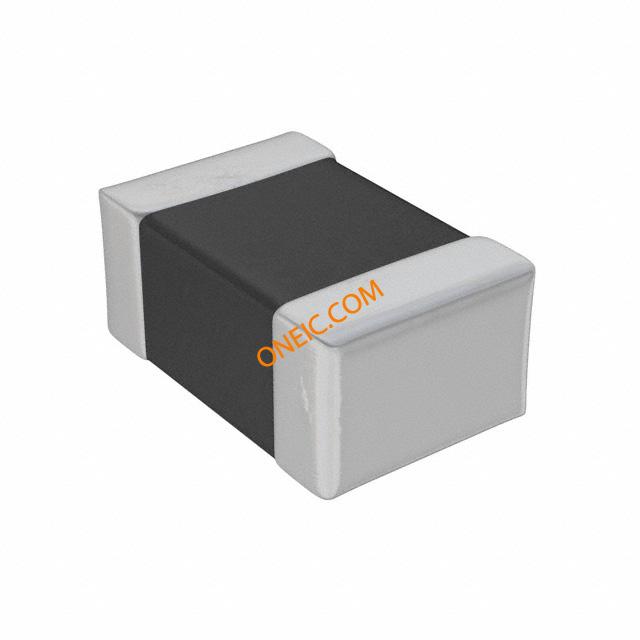

MMZ2012D121B
FERRITE CHIP BEADS

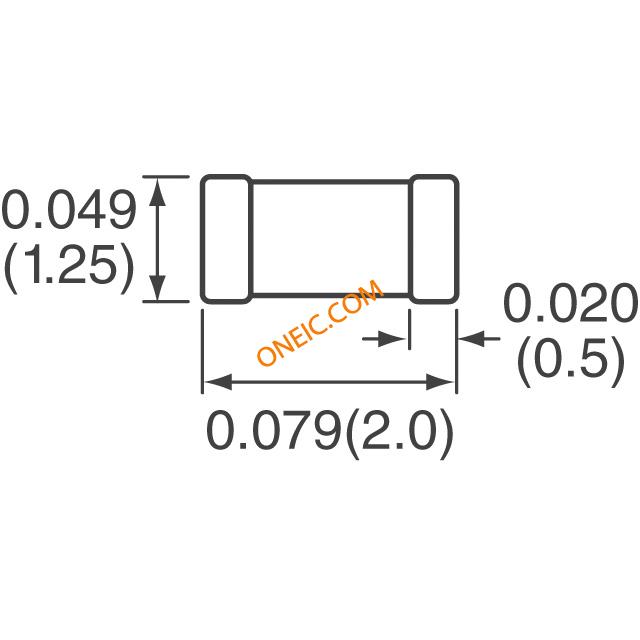

2012-Series-Top.jpg)

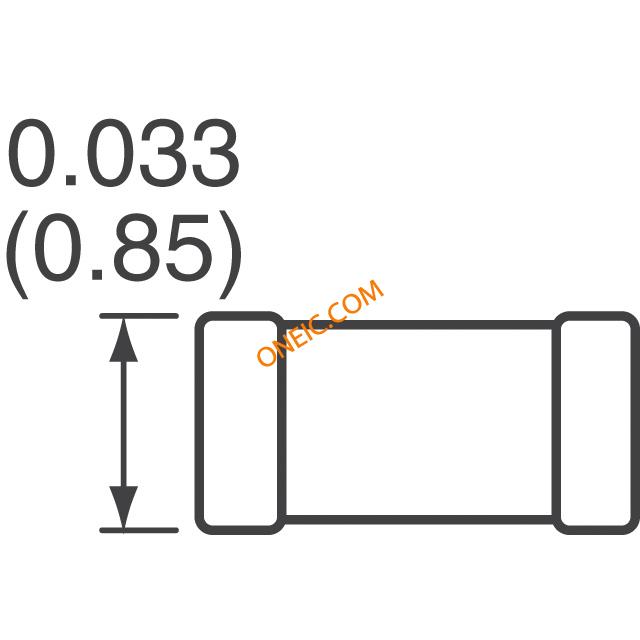

2012-Series-Side.jpg)

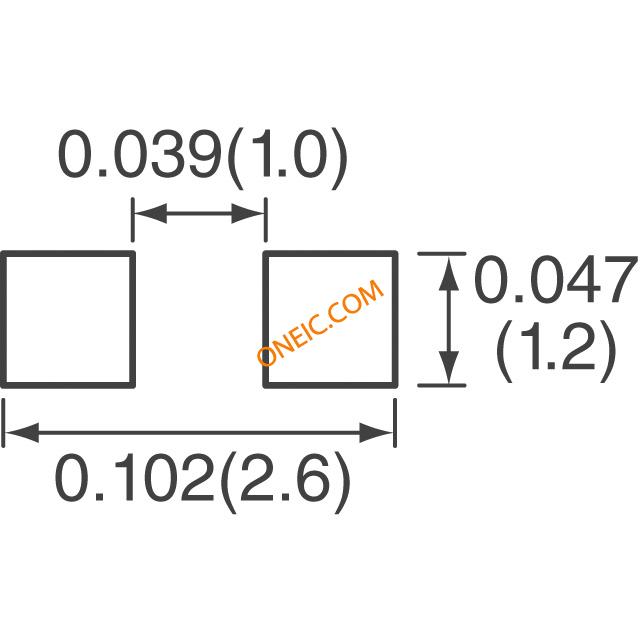

2012-Series-Footprint.jpg)
廠商型號:
MMZ2012D121B
芯天下內部編號:
367-MMZ2012D121B
生產廠商:
tdk
描述:
FERRITE CHIP BEADS
產品類別:
Filter|Filter Misc
客戶編號:
規(guī)格書:
查看PDF
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規(guī)格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| b'RoHS' | RoHS Compliant |
| b'RoHS\xe6\x8c\x87\xe4\xbb\xa4' | Lead free / RoHS Compliant |
| b'\xe4\xba\xa4\xe8\xb4\xa7\xe6\x9c\x9f' | 70 Days |
| b'\xe4\xba\xa7\xe5\x93\x81' | Ferrite Chip Beads |
| b'\xe4\xba\xa7\xe5\x93\x81\xe7\xa7\x8d\xe7\xb1\xbb' | EMI Filter Beads, Chips & Arrays |
| b'\xe5\x85\xb6\xe4\xbb\x96\xe5\x90\x8d\xe7\xa7\xb0' | 445-2188-1 |
| b'\xe5\x8d\x95\xe4\xbd\x8d\xe5\x8c\x85' | 4000 |
| b'\xe5\xa4\x96\xe5\xbd\xa2\xe5\xb0\xba\xe5\xaf\xb8' | 1.25 mm W x 2 mm L x 0.85 mm H |
| b'\xe5\xad\x90\xe7\xb1\xbb\xe5\x88\xab' | Ferrite Beads |
| b'\xe5\xae\x89\xe8\xa3\x85\xe7\xb1\xbb\xe5\x9e\x8b' | Surface Mount |
| b'\xe5\xae\xb9\xe5\xb7\xae' | 25 % |
| b'\xe5\xb0\x81\xe8\xa3\x85' | Tape & Reel (TR) |
| b'\xe5\xb0\x81\xe8\xa3\x85/\xe5\xa4\x96\xe5\xa3\xb3' | 0805 (2012 metric) |
| b'\xe5\xb0\x81\xe8\xa3\x85/\xe5\xa4\x96\xe5\xa3\xb3' | 0805 (2012 metric) |
| b'\xe5\xb0\xba\xe5\xaf\xb8/\xe5\xb0\xba\xe5\xaf\xb8' | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| b'\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6\xe8\x8c\x83\xe5\x9b\xb4' | - 55 C to + 125 C |
| b'\xe5\xb7\xa5\xe5\x8e\x82\xe5\x8c\x85\xe8\xa3\x85\xe6\x95\xb0\xe9\x87\x8f' | 4000 |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe6\xb5\x81' | 500 mA |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb' | 300 mOhms |
| b'\xe6\x9c\x80\xe5\xb0\x8f\xe8\xb5\xb7\xe8\xae\xa2\xe9\x87\x8f' | 4000 |
| b'\xe6\xa0\x87\xe5\x87\x86\xe5\x8c\x85\xe8\xa3\x85' | 4,000 |
| b'\xe6\xb5\x8b\xe8\xaf\x95\xe9\xa2\x91\xe7\x8e\x87' | 100 MHz |
| b'\xe6\xbb\xa4\xe6\xb3\xa2\xe5\x99\xa8\xe7\xb1\xbb\xe5\x9e\x8b' | Differential Mode - Single |
| b'\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb\xef\xbc\x88DCR \xef\xbc\x89' | 300 mOhm Max |
| b'\xe7\xab\xaf\xe6\x8e\xa5\xe7\xb1\xbb\xe5\x9e\x8b' | SMD/SMT |
| b'\xe7\xb3\xbb\xe5\x88\x97' | MMZ |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe5\x8e\x9a\xe5\xba\xa6' | 0.85 mm |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe5\xae\xbd\xe5\xba\xa6' | 1.25 mm |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe9\x95\xbf\xe5\xba\xa6' | 2 mm |
| b'\xe9\x98\xbb\xe6\x8a\x97' | 120 Ohms |
| b'\xe9\xa2\x91\xe7\x8e\x87\xe5\xaf\xb9\xe5\xba\x94\xe7\x9a\x84\xe9\x98\xbb\xe6\x8a\x97' | 120 Ohm @ 100MHz |
| b'\xe9\xa2\x9d\xe5\xae\x9a\xe7\x94\xb5\xe6\xb5\x81' | 500mA |
| b'\xe9\xab\x98\xe5\xba\xa6\xef\xbc\x88\xe6\x9c\x80\xe5\xa4\xa7\xef\xbc\x89' | 0.041" (1.05mm) |
