MV54643
LED Uni-Color Green 562nm 2-Pin T-100
廠商型號:
MV54643
芯天下內部編號:
411-MV54643
生產廠商:
everlight electronics
描述:
LED Uni-Color Green 562nm 2-Pin T-100
產品類別:
Lighting|LEDs

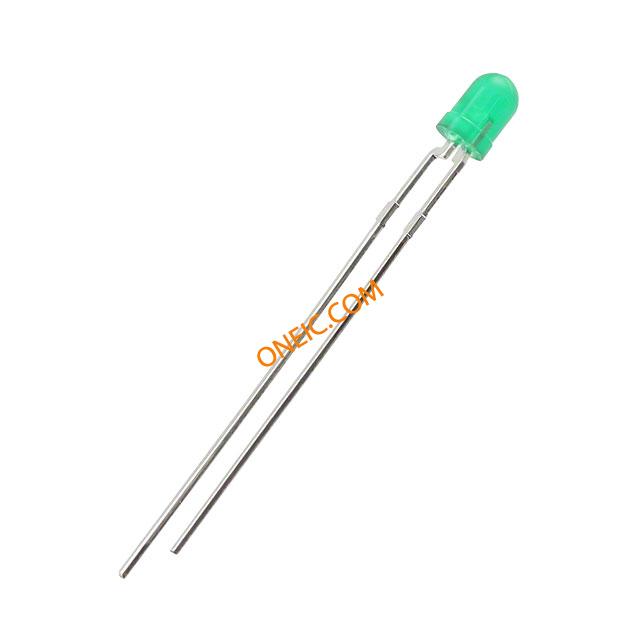

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 2T-100 |
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 5 mcd |
| Peak Wavelength | 562 nm |
| Color | Green |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 90 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Green |
| Luminous Intensity | 5 mcd |
| Wavelength/Color Temperature | 562 nm |
| Lens Color/Style | Diffused |
| Forward Current | 20 mA |
| Forward Voltage | 2.2 V |
| LED Size | T-1 |
| Packaging | Bulk |
| Lens Dimensions | 3 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 5000 |
| Part # Aliases | 512-MV54643 |
| PCB | 2 |
| Maximum Forward Current | 30 |
| Viewing Angle | 90 |
| Reverse Voltage | 5(Min) |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 3 |
| Peak Wavelength | 562 |
| Minimum Operating Temperature | -55 |
| LED Material | GaP |
| Lens Dimensions | 3x3x3.5 |
| Supplier Package | T-100 |
| Maximum Operating Temperature | 100 |
| High Brightness | No |
| Package Diameter | 3.15 |
| Package Height | 4.5 |
| Maximum Power Dissipation | 120 |
| Voltage - Forward (Vf) Typ | 2.2V |
| Mounting Type | Through Hole |
| Lens Style/Size | Round with Domed Top, 3mm |
| Lens Type | Diffused, Tinted |
| Millicandela Rating | 5mcd |
| Wavelength - Peak | 562nm |
| Current - Test | 20mA |
| Height | 4.50mm |
| Other Names | 1080-1113 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| 電流 - 測試 | 20mA |
| 系列 | MV5464X |
| 透鏡樣式/尺寸 | Round with Domed Top, 3mm |
| 高度 | 4.50mm |
| 視角 | 90° |
| 波長 - 峰值 | 562nm |
| 封裝/外殼 | Radial |
| 毫燭光等級 | 5mcd |
| 透鏡類型 | Diffused, Tinted |
| 裝配類型 | Through Hole |
| 顏色 | Green |
