PM3BWDW12.0
PNL MNT BLUE 20MA W/WIRE 12"
廠商型號:
PM3BWDW12.0
芯天下內部編號:
15-PM3BWDW12-0
生產廠商:
Bivar Inc
描述:
PNL MNT BLUE 20MA W/WIRE 12"
產品類別:
Optoelectronics|Panel Indicators, Pilot Lights|PM3
客戶編號:
規格書:
查看PDF

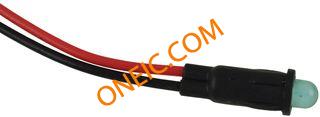

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Voltage - Forward (Vf) Typ | 4V |
| Connection Method | Wire Leads: 12" (304.8mm) |
| Panel Cutout Dimensions | 4mm (Round) |
| Lens Style/Size | Round with Domed Top, 3mm, T-1 |
| Color | Blue |
| Viewing Angle | 40° |
| Millicandela Rating | 10mcd |
| Lens Color | Diffused |
| Wavelength - Peak | 468nm |
| Standard Package | 100 |
| Current - DC Forward (If) | 20mA |
| Type | LED |
| Illumination Color | Blue |
| Product Category | LED Panel Mount Indicators |
| Lens Color/Style | Diffused |
| Mounting Style | Panel |
| LED Size | 3 mm |
| RoHS | RoHS Compliant |
| Mounting Hole Dia | :4.064mm |
| LED Color | :Blue |
| Forward Current If | :25mA |
| Forward Voltage | :4V |
| Luminous Intensity | :10mcd |
| Lens Shape | :Round |
| Weight (kg) | 0 |
| Tariff No. | 85414010 |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| PM3BWDW12-CC2 | Bivar | LED Panel Mount Indicators Blue 430nm 20mcd Water Clr Wire &Con | 查看詳情 |
| PM3BWDW6 | Bivar | LED Panel Mount Indicators Panel Mount LED 3mm Blue | 查看詳情 |
