VLMB1310-GS08
Standard LEDs - SMD Blue Clear Non-Diff
廠商型號:
VLMB1310-GS08
芯天下內部編號:
5-VLMB1310-GS08
生產廠商:
Vishay Semiconductors
描述:
Standard LEDs - SMD Blue Clear Non-Diff
產品類別:
Optoelectronics|LED Lighting|LED Emitters|Standard LEDs - SMD

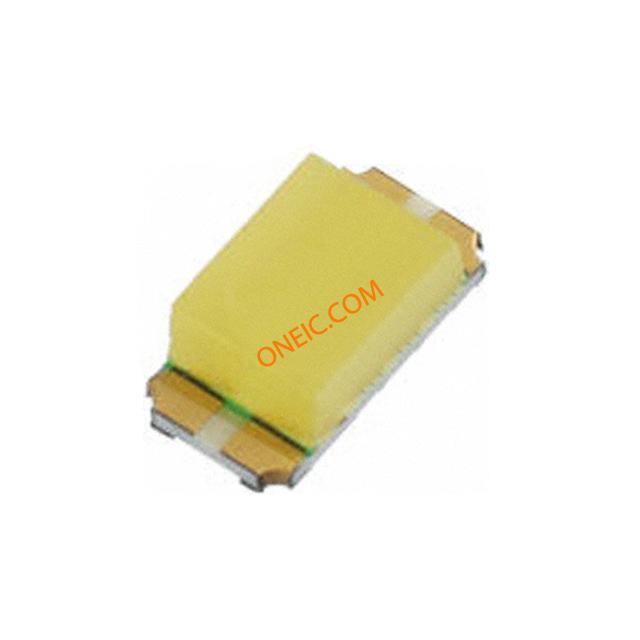

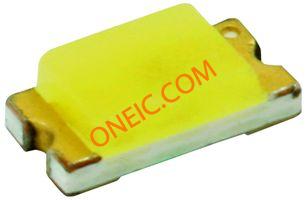

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Standard LEDs - SMD |
| RoHS | RoHS Compliant |
| Package / Case | 0603 |
| LED Size | 1.6 mm x 0.8 mm x 0.6 mm |
| Illumination Color | Blue |
| Wavelength/Color Temperature | 475 nm |
| Lens Color/Style | Water Clear |
| Forward Current | 20 mA |
| Forward Voltage | 3.8 V |
| Luminous Intensity | 180 mcd |
| Viewing Angle | 130 deg |
| Series | VLMx1300 |
| Packaging | Reel |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 55 C |
| Power Rating | 75 mW |
| Life | New Product: New from this manufacturer. |
| Unit Pack | 3000 |
| MOQ | 3000 |
| Voltage - Forward (Vf) Typ | 3.3V |
| Mounting Type | Surface Mount |
| Lens Style/Size | Rectangle with Flat Top, 1.1mm x 0.8mm |
| Color | Blue |
| Wavelength - Dominant | 470nm |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Millicandela Rating | 104mcd |
| Wavelength - Peak | 468nm |
| Standard Package | 3,000 |
| Current - Test | 20mA |
| Height | 0.80mm |
| Lens Type | Clear |
| Package/Case | 0603 (1608 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | VLMB1310-GS08CT |
| Emitting Color | Blue |
| Power Dissipation | 76 W |
| Mounting | Surface Mount |
| Operating Temp Range | -20C to 80C |
| Package Type | Chip Led |
| Peak Wavelength | 468 nm |
| Pin Count | 2 |
| High Brightness | Yes |
| Shape Type | Rectangular |
| Type | Uni-Color |
| Number of Elements | 1 |
| Operating Temperature Classification | Commercial |
| Lens Dimensions | 1.1X0.8X0.52 mm |
| Dominant Wave Length | 475 nm |
| Test Current (It) | 20 mA |
| Chip Material | InGaN |
| Main Category | Chip LED |
| Rad Hardened | No |
| Product Depth (mm) | 0.8 mm |
| Product Height (mm) | 0.8 mm |
| Product Length (mm) | 1.6 mm |
| Bulb Size | :1.6mm x 0.8mm |
| LED Color | :Blue |
| Forward Current If | :20mA |
| LED Mounting | :SMD |
| Lens Shape | :Rectangular |
| Weight (kg) | 0 |
| Tariff No. | 85414010 |
| Forward Current @ Test | :20mA |
| Forward Current If Max | :20mA |
| Forward Voltage @ Test | :3.8V |
| Luminous Intensity @ Test | :180mcd |
| Operating Temperature Max | :80°C |
| LED Colour | :Blue |
| Wavelength Typ | :468nm |
