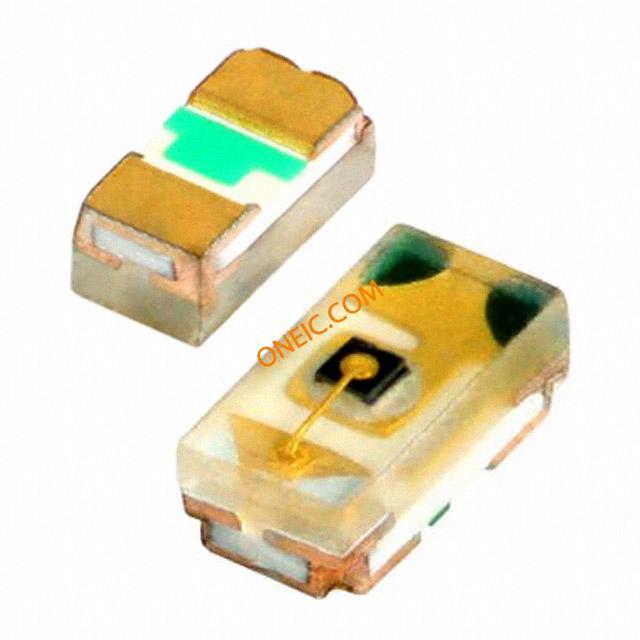

VLMS1500-GS08
LED SUPER RED 631NM 0402 SMD
廠商型號:
VLMS1500-GS08
芯天下內部編號:
5-VLMS1500-GS08
生產廠商:
Vishay Semiconductor Opto Division
描述:
LED SUPER RED 631NM 0402 SMD
產品類別:
Optoelectronics|LED Lighting|LED Emitters|Standard LEDs - SMD
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Unit Pack | 3000 |
| MOQ | 9000 |
| Voltage - Forward (Vf) Typ | 2V |
| Mounting Type | Surface Mount |
| Lens Style/Size | Rectangle with Flat Top, 1.0mm x 0.5mm |
| Color | Red |
| Viewing Angle | 65° |
| Wavelength - Dominant | 631nm |
| Size / Dimension | 1.00mm L x 0.50mm W |
| Millicandela Rating | 54mcd |
| Packaging | Tape & Reel (TR) |
| Standard Package | 3,000 |
| Current - Test | 20mA |
| Height | 0.35mm |
| Package/Case | 0402 (1005 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | VLMS1500-GS08CT |
| Illumination Color | Red |
| Product Category | Standard LEDs - SMD |
| Wavelength/Color Temperature | 631 nm |
| Forward Current | 30 mA |
| Series | VLMx1500 |
| Forward Voltage | 2 V |
| Luminous Intensity | 54 mcd |
| Tradename | ChipLED |
| Package / Case | 0402 |
| LED Size | 1 mm x 0.5 mm x 0.35 mm |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 30 C |
| RoHS | RoHS Compliant |
| 透鏡形狀 | 正方形 |
| 視角 | ±65 ° |
| LED 數目 | 1 |
| 光強度 | 54 mcd |
| 安裝類型 | 表面安裝 |
| LED 材料 | AlInGaP |
| 封裝類型 | 1005 (0402) |
| 針數目 | 2 |
| 正向電壓 | 2.4 V |
| 尺寸 | 1 x 0.5 x 0.35mm |
| LED 顏色 | 紅色 |
| 主波長 | 631 nm |
