WP3A8GD
Standard LEDs - Through Hole Green 568nm Diffused 20mcd
廠商型號:
WP3A8GD
芯天下內部編號:
213-WP3A8GD
生產廠商:
Kingbright
描述:
Standard LEDs - Through Hole Green 568nm Diffused 20mcd
產品類別:
Optoelectronics|LED Indication|Standard LEDs - Through Hole
客戶編號:
規格書:
查看PDF

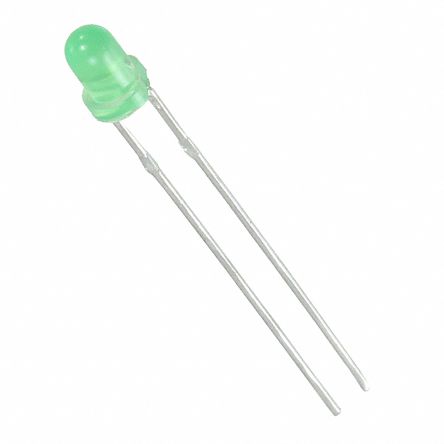

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Green |
| Luminous Intensity | 20 mcd |
| Wavelength/Color Temperature | 568 nm |
| Viewing Angle | 50 deg |
| LED Size | T-1 |
| Packaging | Bulk |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 1000 |
| Voltage - Forward (Vf) Typ | 2.2V |
| Mounting Type | Through Hole |

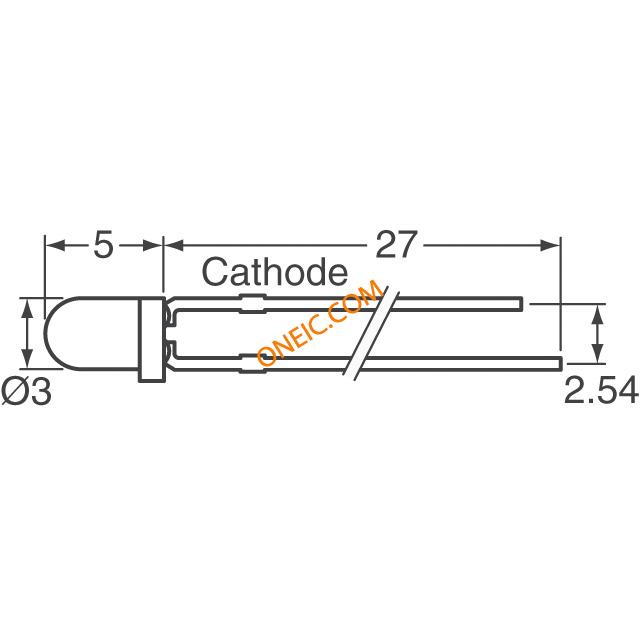

| Lens Style/Size | Round with Domed Top, 3mm, T-1 |
| Color | Green |
| Lens Type | Diffused, Tinted |
| Wavelength - Dominant | 568nm |
| Millicandela Rating | 20mcd |
| Wavelength - Peak | 565nm |
| Standard Package | 1,000 |
| Current - Test | 10mA |
| Height | 5.00mm |
| Other Names | 754-1217 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Forward Current | 25 mA |
| Color,Emitted | Green |
| Color,Lens | Green |
| Current,Forward | 25mA |
| Finish,Lens | Diffused |
| LensShape | Round |
| LuminousIntensity | 20mcd |
| MountingType | Thru-Hole |
| PackageType | T1(3mm) |
| ViewingAngle | 50° |
| Voltage,Forward | 2.2V |
| Wavelength,Peak | 565nm |
| 外部高度 | 6mm |
| 光強度 | 20 mcd |
| 最高工作溫度 | +85°C |
| 外部寬度 | 4mm |
| 安裝類型 | 通孔安裝 |
| 使用于 | 工業機械 |
| 最低工作溫度 | -40°C |

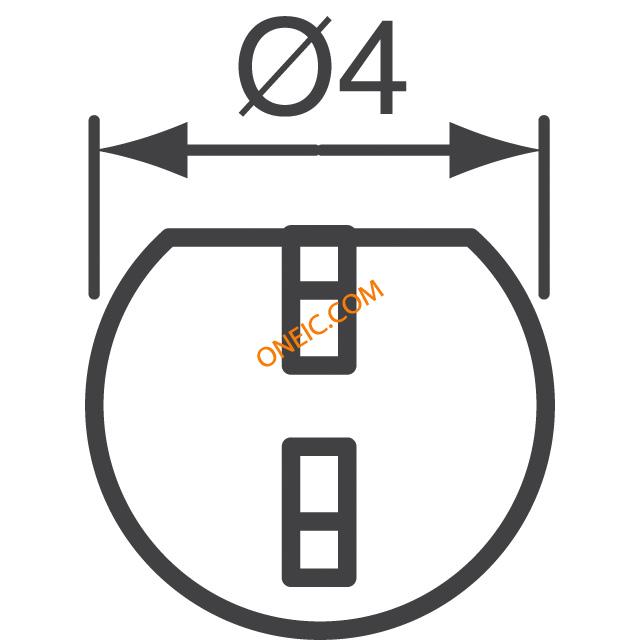

| 外部尺寸 | 4 (Dia.) x 6mm |
| 工作溫度范圍 | -40 → +85°C |
| 正向電流 | 25mA |
| 功耗 | 62.5mW |
| 正向電壓 | 2.5 V |
| LED 顏色 | 綠色 |
