0855135014

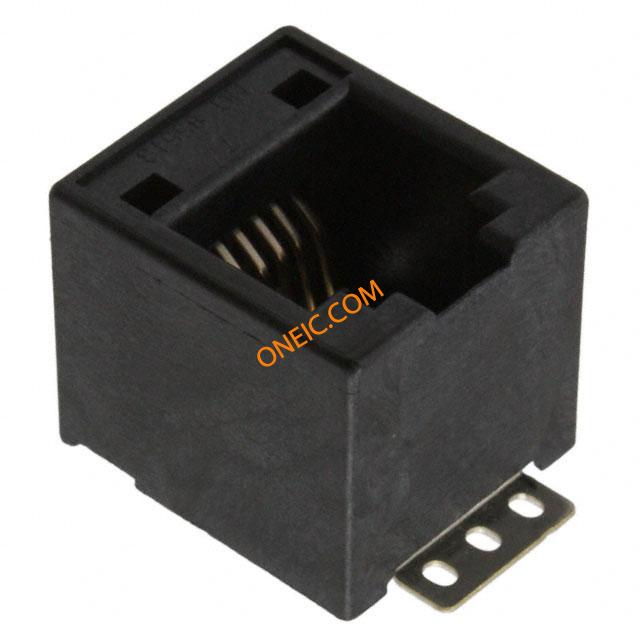

CONN MODULAR JACK 6-6 SMD VERT
廠商型號:
0855135014
芯天下內部編號:
256-0855135014
生產廠商:
Molex Inc
描述:
CONN MODULAR JACK 6-6 SMD VERT
產品類別:
Connectors, Interconnects|Modular Connectors - Jacks|85513
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Ratings | Cat3 |
| Tab Direction | User Selectable |
| Shielding | Unshielded |
| Mounting Type | Surface Mount |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Rows | 1 |
| Termination | Solder |
| Standard Package | 240 |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Tape & Reel (TR) |
| Number of Ports | 1 |
| Operating Temperature | -40°C ~ 85°C |
| LED Color | Does Not Contain LED |
| Features | Solder Retention |
| Orientation | Vertical |
| Contact Finish Thickness | Flash |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Contact Material | Copper Alloy |
| Other Names | WM3554CT |
| rohs | Lead free / RoHS Compliant |
