0855105017

Conn RJ-11 F 4 POS 1.27mm Solder ST SMD 4 Terminal 1 Port Embossed T/R Cat 3

廠商型號: 0855105017
芯天下內部編號: 256-0855105017
生產廠商:
Molex Molex
描述: Conn RJ-11 F 4 POS 1.27mm Solder ST SMD 4 Terminal 1 Port Embossed T/R Cat 3
產品類別: Connectors, Interconnects|Modular Connectors - Jacks|85510
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

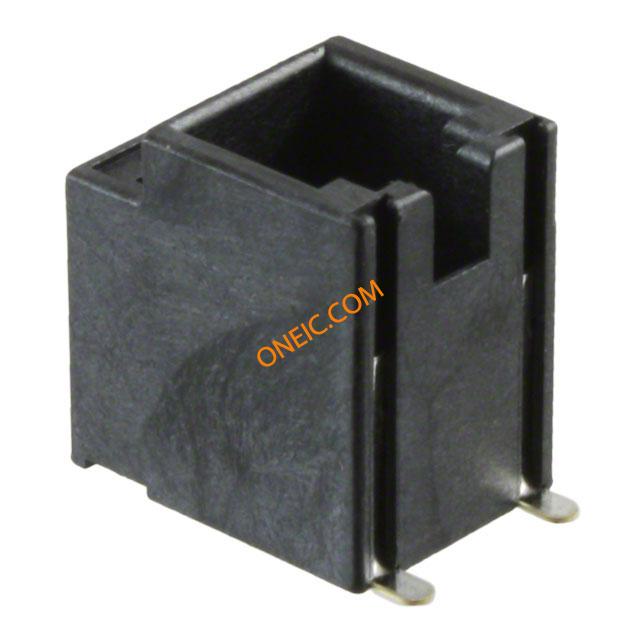

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。

庫存與訂購

庫存: 0
庫存獲取中,，請稍候....

產品參數

參數類型 參數值
Packaging Embossed Tape and Reel
Product Length 11.18
EU RoHS Compliant
Number of Loaded Positions 4
Product Depth 19.37
Mounting Surface Mount
Body Orientation Straight
Termination Method Solder
Category Number Cat 3
Maximum Voltage Rating 125VDC
Product Height 15.7
Housing Material Liquid Crystal Polymer
Number of Ports 1
Number of Contacts 4
Pitch 1.27
Housing Color Black
Contact Plating Gold Over Nickel
Gender F
Maximum Current Rating 1.5/Contact
Type RJ-11
Contact Material Brass
Ratings Cat3
Tab Direction User Selectable
Shielding Unshielded
Mounting Type Surface Mount
Number of Positions/Contacts 4p4c (RJ9, RJ10, RJ22)
Number of Rows 1
Termination Solder
Standard Package 1,470
Connector Type Jack
Contact Finish Gold
Operating Temperature -45°C ~ 85°C
LED Color Does Not Contain LED
Features Solder Retention
Orientation Vertical
Contact Finish Thickness Flash
rohs Lead free / RoHS Compliant
Other Names WM6811CT
Operating Temp Range -40C to 80C
Positions Loaded 4
Current Rating (Max) 1.5/Contact A
Mounting Style Surface Mount
Product Length (mm) 11.18 mm
Product Height (mm) 15.7 mm
Voltage Rating Max 125VDC
Pitch (mm) 1.27 mm
Family 85510
DELETED Compliant
Product Depth (mm) 19.37 mm
