0855105020

Conn RJ-45 F 8 POS 1.27mm Solder ST SMD 8 Terminal 1 Port Embossed T/R Cat 3

廠商型號: 0855105020
芯天下內部編號: 256-0855105020
生產廠商:
Molex Molex
描述: Conn RJ-45 F 8 POS 1.27mm Solder ST SMD 8 Terminal 1 Port Embossed T/R Cat 3
產品類別: Connectors, Interconnects|Modular Connectors - Jacks|85510
客戶編號:
規格書: 查看PDF
瀏覽次數: 5

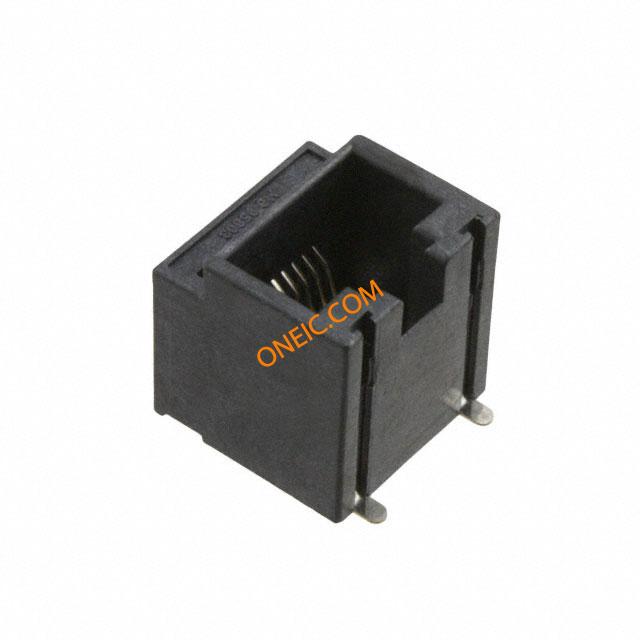

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Packaging Embossed Tape and Reel
Product Length 15.24
EU RoHS Compliant
Number of Loaded Positions 8
Product Depth 17.37
Mounting Surface Mount
Body Orientation Straight
Termination Method Solder
Category Number Cat 3
Maximum Voltage Rating 125VDC
Product Height 15.7
Housing Material Liquid Crystal Polymer
Number of Ports 1
Number of Contacts 8
Pitch 1.27
Housing Color Black
Contact Plating Gold Over Nickel
Gender F
Maximum Current Rating 1.5/Contact
Type RJ-45
Contact Material Copper Alloy
Ratings Cat3
Tab Direction User Selectable
Shielding Unshielded
Mounting Type Surface Mount
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Rows 1
Termination Solder
Standard Package 180
Connector Type Jack
Contact Finish Gold
Operating Temperature -45°C ~ 85°C
LED Color Does Not Contain LED
Features Solder Retention
Orientation Vertical
Contact Finish Thickness Flash
rohs Lead free / RoHS Compliant
Other Names WM3550CT
