0855105019

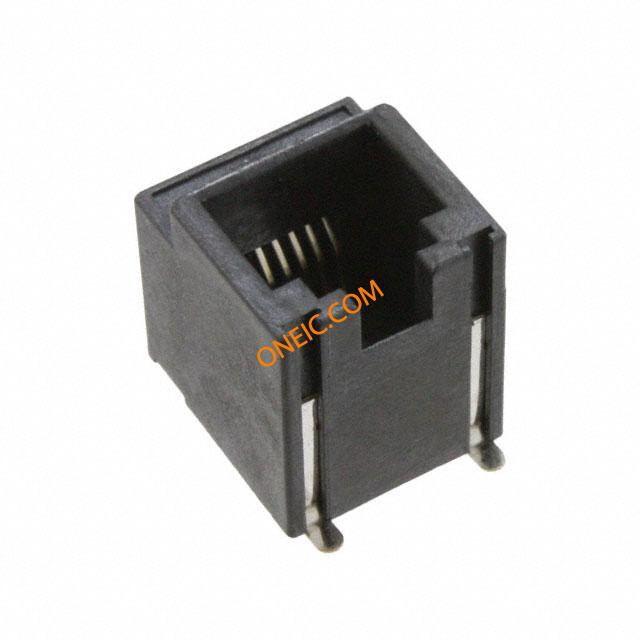

Conn RJ-11 F 6 POS 1.27mm Solder ST SMD 6 Terminal 1 Port Embossed T/R Cat 3

廠商型號: 0855105019
芯天下內部編號: 256-0855105019
生產廠商:
molex molex
描述: Conn RJ-11 F 6 POS 1.27mm Solder ST SMD 6 Terminal 1 Port Embossed T/R Cat 3
產品類別: Interconnect|Connector Telephone and Telecom
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。

庫存與訂購

庫存: 0
庫存獲取中,，請稍候....

產品參數

參數類型 參數值
Type RJ-11
Gender F
Pitch 1.27 mm
Termination Method Solder
Mounting Surface Mount
Body Orientation Straight
Standard Package Tape & Reel
Packaging Embossed Tape and Reel
Product Length 13.21
EU RoHS Compliant
Number of Loaded Positions 6
Product Depth 17.37
Category Number Cat 3
Maximum Voltage Rating 125VDC
Product Height 15.7
Housing Material Liquid Crystal Polymer
Number of Ports 1
Number of Contacts 6
Pitch 1.27
Housing Color Black
Contact Plating Gold Over Nickel
Maximum Current Rating 1.5/Contact
Contact Material Copper Alloy
Ratings Cat3
Tab Direction User Selectable
Shielding Unshielded
Mounting Type Surface Mount
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows 1
Termination Solder
Connector Type Jack
Contact Finish Gold
Operating Temperature -45°C ~ 85°C
LED Color Does Not Contain LED
Features Solder Retention
Orientation Vertical
Contact Finish Thickness Flash
rohs Lead free / RoHS Compliant
Other Names WM3549CT
Operating Temp Range -40C to 80C
Current Rating (Max) 1.5/Contact A
Mounting Style Surface Mount
Voltage Rating Max 125VDC
Pitch (mm) 1.27 mm
Family 85510
