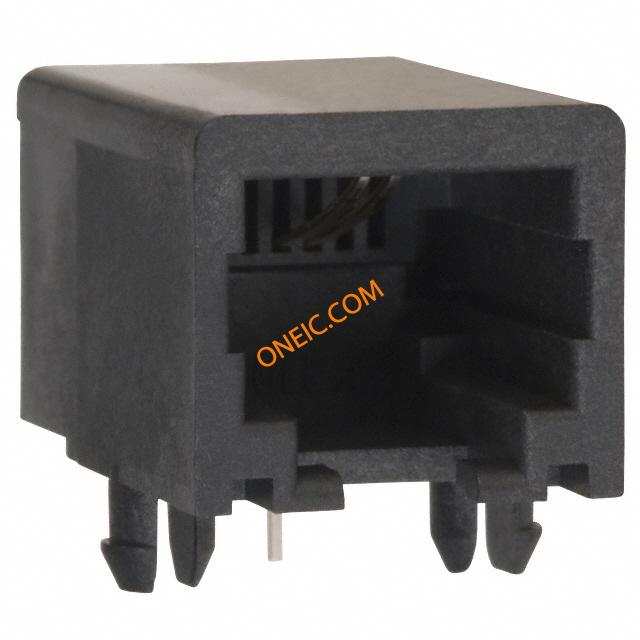

43202-6107
CONN MOD JACK R/A 6P2C
廠商型號:
43202-6107
芯天下內部編號:
256-43202-6107
生產廠商:
Molex Connector Corporation
描述:
CONN MOD JACK R/A 6P2C
產品類別:
Connectors, Interconnects|Modular Connectors - Jacks|43202
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Ratings | Cat4 |
| Tab Direction | Down |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 6p2c (RJ11) |
| Number of Rows | 1 |
| Termination | Solder |
| Standard Package | 1 |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Tray |
| Number of Ports | 1 |
| Operating Temperature | -40°C ~ 85°C |
| LED Color | Does Not Contain LED |
| Features | Board Lock |
| Orientation | 90° Angle (Right) |
| Contact Finish Thickness | 50μin (1.27μm) |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Contact Material | Phosphor Bronze |
| Factory Pack Quantity | 2000 |
| Current Rating | 1.5 A |
| Termination Style | Through Hole |
| Part # Aliases | 0432026107 |
| Product Category | Modular Connectors / Ethernet Connectors |
| Voltage Rating | 125 V |
| Number of Positions / Contacts | 6 |
| Contact Plating | Gold |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature Range | - 40 C to + 85 C |
| Gender | Female |
| RoHS | RoHS Compliant |
| Mounting Angle | Right |
| USOC Codes | RJ11 |
| Color | Black |
| Series | 43202 |
| Performance Category | Cat 3, Cat 4 |
| Pitch | 1.27 mm |
