5300-01-RC
Ind RF Choke Bobbin Core 1uH 10% 7.96MHz Ferrite 3.3A AXL Bag
廠商型號:
5300-01-RC
芯天下內部編號:
18-5300-01-RC
生產廠商:
bourns / j.w. miller
描述:
Ind RF Choke Bobbin Core 1uH 10% 7.96MHz Ferrite 3.3A AXL Bag
產品類別:
Inductor|Inductor Leaded

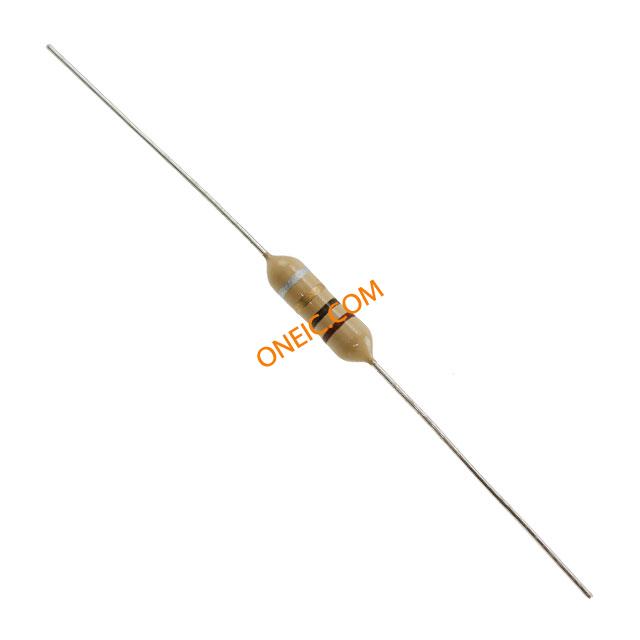

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RF Choke |
| Inductance | 1 uH |
| Tolerance | 10 % |
| Product Length | 12.7 mm |
| Maximum DC Current | 3.3 A |
| Lead Style | Axial |
| Core Material | Ferrite |
| Maximum DC Resistance | 18 mOhm |
| Operating Temperature | -55 to 105 °C |
| Standard Package | Bulk |
| Maximum DC Resistance | 18m |
| Product Length | 12.7 |
| EU RoHS | Compliant |
| Minimum Self Resonant Frequency | 190M |
| Maximum DC Current | 3.3 |
| Product Diameter | 4.06 |
| Packaging | Bag |
| Test Frequency | 7.96M |
| Maximum Operating Temperature | 105 |
| Minimum Operating Temperature | -55 |
| Technology | Bobbin Core |
| Current Rating | 3.3A |
| DC Resistance (DCR) | 18 mOhm Max |
| Material - Core | Ferrite |
| Frequency - Self Resonant | 190MHz |
| Shielding | Unshielded |
| Supplier Device Package | Axial |
| Size / Dimension | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) |
| Mounting Type | Through Hole |
| Frequency - Test | 7.96MHz |
| Current - Saturation | 3A |
| Other Names | 530001RC |
| Package/Case | Axial |
| rohs | Lead free / RoHS Compliant |
