5300

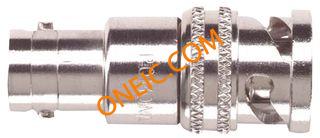

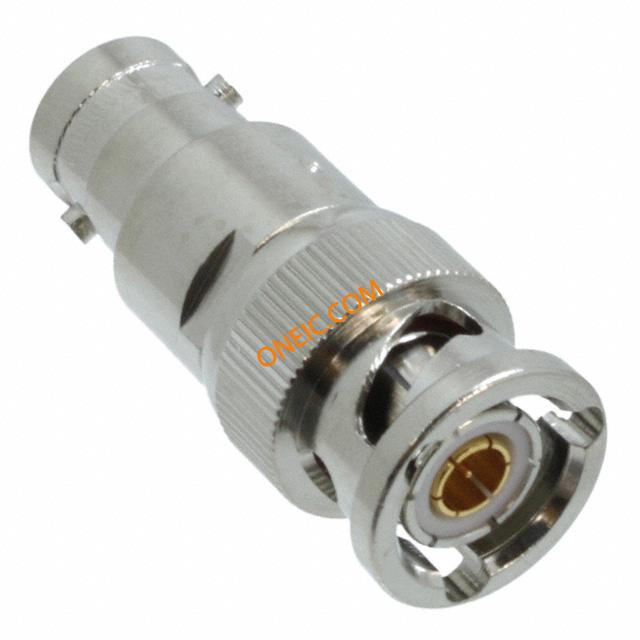

RF Adapters - Between Series F/M BNC-3LUG TRX M
廠商型號:
5300
芯天下內部編號:
297-5300
生產廠商:
Pomona Electronics
描述:
RF Adapters - Between Series F/M BNC-3LUG TRX M
產品類別:
Connectors|RF Interconnects|RF Adapters|RF Adapters - Between Series
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 35.31 |
| EU RoHS | Compliant |
| Body Plating | Nickel |
| Gender | F/M |
| Body Orientation | Straight |
| Body Material | Brass |
| Operating Frequency | 0 to 500M |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper/Brass |
| Type | BNC-Triaxial Adapter |
| Insulation Material | Polytetrafluoroethylene |
| Product Diameter | 14.48 |
| Center Contact Plating | Gold |
| Style | Straight |
| Frequency - Max | 500MHz |
| Features | Three Lug |
| Mounting Type | Free Hanging (In-Line) |
| Convert To (Adapter End) | BNC Jack, Female Socket |
| Convert From (Adapter End) | Triax Plug, Male Pin |
| Center Gender | Female to Male |
| Center Contact Material | Beryllium Copper; Brass |
| Conversion Type | Between Series |
| Packaging | Bulk |
| Adapter Type | Plug to Jack |
| Standard Package | 2 |
| Body Finish | Nickel |
| Adapter Series | BNC to Triax |
| rohs | Lead free / RoHS Compliant |
| Side 2 RF Series | Triax |
| Factory Pack Quantity | 2 |
| Frequency Range | DC to 500 MHz |
| Product Category | RF Adapters - Between Series |
| Side 1 Gender | Jack (Female) |
| Side 1 RF Series | BNC |
| Connector Type | BNC Triax |
| Adapter Style | Straight |
| RoHS | RoHS Compliant |
| Side 1 Polarity | Normal |
| Part # Aliases | 1911677 |
| Side 2 Gender | Plug (Male) |
| Shell Plating | Nickel |
| Angle | Straight |
| ContactPlating | Gold |
| Diameter,Overall | 0.57in. |
| Finish,Housing | Nickel |
| Length | 1.39in. |
| Material,Contact | Brass(Plug),BerylliumCu(Jack) |
| Material,Dielectric | TFE |
| Material,Housing | Brass |
| MatingType | Bayonet |
| PrimaryType | Adapter |
| Voltage,Rating | 500V |
