ADUM1200BRZ
Digital Isolator 8-Pin SOIC N
廠商型號:
ADUM1200BRZ
芯天下內部編號:
1-ADUM1200BRZ
生產廠商:
analog devices
描述:
Digital Isolator 8-Pin SOIC N
產品類別:
Interface|Interface Misc

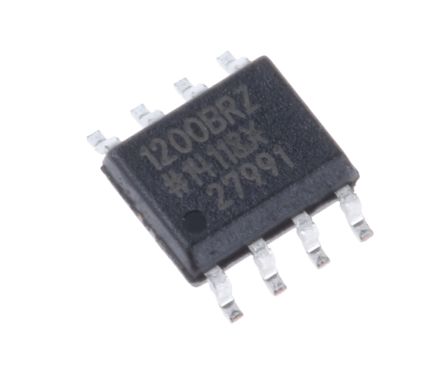

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Operating Temperature | -40 to 105 °C |
| Standard Package | Rail / Tube |
| Minimum Isolation Voltage | 2500 |
| Maximum Quiescent Supply Current | 0.6 |
| Maximum Propagation Delay Skew | 22 |
| Minimum Pulse Width | 100 |
| EU RoHS | Compliant |
| Maximum Pulse Width Distortion | 3 |
| Number of Channels per Chip | 2 |
| Output Type | Logic |
| Maximum Fall Time | 3(Typ) |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOIC N |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 105 |
| Maximum Data Rate | 10Mbps |
| ESD Protection | No |
| Maximum Propagation Delay Time | 50 |
| Pin Count | 8 |
| Minimum Common Mode Rejection | 25 |
| Maximum Working Insulation Voltage | 560Vp |
| Agency Approvals | CSA/UL/VDE |
| Maximum Operating Supply Voltage | 5.5 |
| Maximum Rise Time | 3(Typ) |
| Lead Shape | Gull-wing |
| Inputs - Side 1/Side 2 | 2/0 |
| Supplier Device Package | 8-SOIC N |
| Propagation Delay | 50ns |
| Packaging | Tube |
| Number of Channels | 2 |
| Data Rate | 10Mbps |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| Voltage - Isolation | 2500Vrms |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Depth | 1.5mm |
| Isolation Voltage | 2500 V |
| Length | 5mm |
| Maximum Forward Voltage | 5V |
| Maximum Input Current | 10 μA |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Rise Time | 3ns |
| Width | 4mm |
| Factory Pack Quantity | 98 |
| Number of Input Lines | 2 |
| Series | ADUM1200 |
| Supply Voltage - Max | 5.5 V |
| Supply Current | 0.6 mA |
| Mounting Style | SMD/SMT |
| Propagation Delay Time | 45 ns |
| Package / Case | SOIC-8 |
| Supply Voltage - Min | 2.7 V |
| RoHS | RoHS Compliant |
| No. of Channels | :2 |
| Supply Voltage Min | :2.7V |
| Supply Voltage Max | :5.5V |
| Digital IC Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :1200 |
| Channel Configuration | :2/0 |
| IC Generic Number | :1200 |
| Logic Function Number | :1200 |
| Operating Temperature Range | :-40°C to +105°C |
| Supply Voltage Range | :2.7V to 5.5V |
| Termination Type | :SMD |
| Voltage Vcc | :5V |
| Weight (kg) | 0.000076 |
| Tariff No. | 85423190 |
| Mounting | SMD |
| Inductor type | digital isolator |
| Gross weight | 0.03 g |
| Number of channels | 2 |
| Multiplicity | 1 |
| Collective package [pcs] | 300 |
| spg | 300 |
