ADUM1200WTRZ
Digital Isolator 8-Pin SOIC N
廠商型號:
ADUM1200WTRZ
芯天下內部編號:
1-ADUM1200WTRZ
生產廠商:
analog devices
描述:
Digital Isolator 8-Pin SOIC N
產品類別:
Interface|Interface Misc

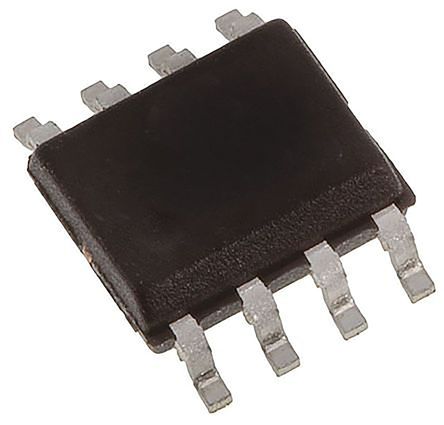

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Operating Temperature | -40 to 125 °C |
| Standard Package | Rail / Tube |
| Mounting | Surface Mount |
| Minimum Isolation Voltage | 2500 |
| Maximum Quiescent Supply Current | 0.6 |
| Package Width | 4(Max) |
| PCB | 8 |
| Maximum Propagation Delay Skew | 22 |
| Minimum Pulse Width | 100 |
| EU RoHS | Compliant |
| Maximum Pulse Width Distortion | 3 |
| Number of Channels per Chip | 2 |
| Output Type | Logic |
| Maximum Fall Time | 3(Typ) |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOIC N |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 125 |
| Maximum Data Rate | 10Mbps |
| ESD Protection | No |
| Maximum Propagation Delay Time | 50 |
| Package Length | 5(Max) |
| Pin Count | 8 |
| Minimum Common Mode Rejection | 25 |
| Package Height | 1.5(Max) |
| Maximum Working Insulation Voltage | 560Vp |
| Agency Approvals | CSA/UL/VDE |
| Maximum Operating Supply Voltage | 5.5 |
| Maximum Rise Time | 3(Typ) |
| Lead Shape | Gull-wing |
| Depth | 1.5mm |
| Isolation Voltage | 2500 V |
| Length | 5mm |
| Maximum Forward Voltage | 5V |
| Maximum Input Current | 10 μA |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Mounting Type | PCB Surface Mount |
| Number of Pins | 8 |
| Rise Time | 3ns |
| Width | 4mm |
| rohs | Compliant |
| 最高數據速率 | 10Mbps |
| 最高工作溫度 | +125°C |
| 最大正向電壓 | 5V |
| 最大輸入電流 | 10 μA |
| 安裝類型 | 表面安裝 |
| 最低工作溫度 | -40°C |
| 隔離電壓 | 2500 V |
| 寬度 | 4mm |
| 封裝類型 | SOIC |
| 針數目 | 8 |
| 深度 | 1.5mm |
| 長度 | 5mm |
| 通道數目 | 2 |
| Factory Pack Quantity | 98 |
| Series | ADUM1200 |
| Brand | Analog Devices |
| Packaging | Tube |
| Number of Channels | 2 Channel |
| Package / Case | SOIC-8 |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Propagation Delay Time | 45 ns |
| RoHS | RoHS Compliant |
