BR1101W-TR
LED Uni-Color Red 660nm 2-Pin SMD T/R
廠商型號:
BR1101W-TR
芯天下內部編號:
393-BR1101W-TR
生產廠商:
Stanley Electric
描述:
LED Uni-Color Red 660nm 2-Pin SMD T/R
產品類別:
Optoelectronics|LED Indication - Discrete|1101W

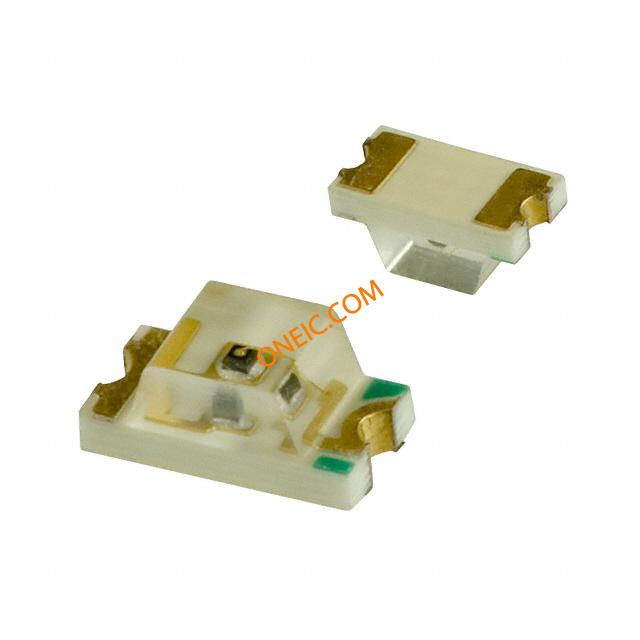

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Dominant Wavelength | 647 |
| Maximum Forward Current | 30 |
| Maximum Power Dissipation | 60 |
| Type | Uni-Color |
| Viewing Angle | 152/141 |
| Reverse Voltage | 4 |
| EU RoHS | Compliant |
| Lens Appearance | Colorless Non Diffused |
| Maximum Forward Voltage per Color | 2 |
| Peak Wavelength | 660 |
| Minimum Operating Temperature | -30 |
| LED Material | GaAlAs |

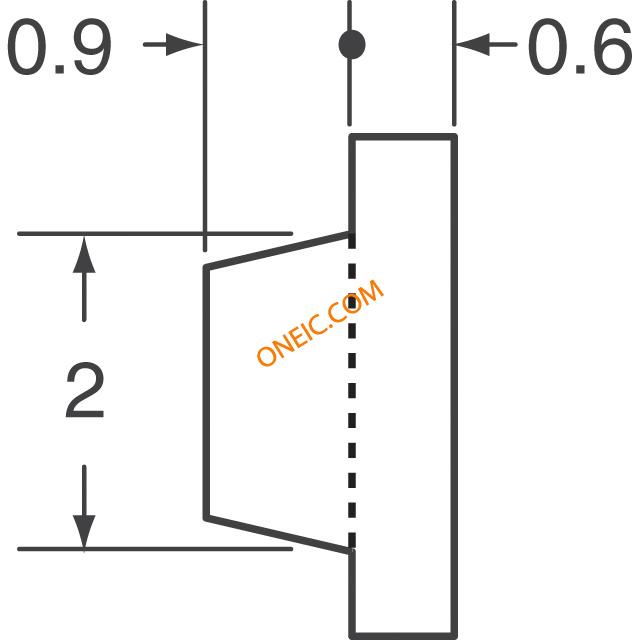

| Lens Dimensions | 2x1.5x0.9 |
| Supplier Package | SMD |
| Standard Package Name | SMD |
| Mounting Orientation | Top Mount |
| Maximum Operating Temperature | 85 |
| Number of LEDs | 1 |
| Pin Count | 2 |
| Color | Red |
| Packaging | Tape and Reel |
| Intensity | 12.8mcd |
| Lens Shape Type | Rectangular |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 1.7V |
| Mounting Type | Surface Mount |
| Lens Style/Size | Rectangle with Flat Top, 2mm x 1.5mm |
| Viewing Angle | 152°, 141° |
| Wavelength - Dominant | 647nm |

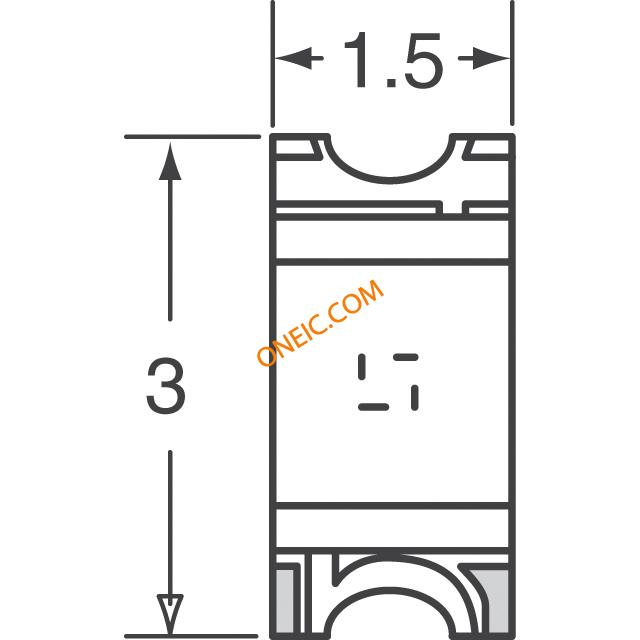

| Size / Dimension | 3.00mm L x 1.50mm W |
| Millicandela Rating | 12.8mcd |
| Wavelength - Peak | 660nm |
| Standard Package | 2,500 |
| Current - Test | 20mA |
| Height | 1.50mm |
| Lens Type | Clear |
| Package/Case | 1206 (3216 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 404-1042-1 |
| 電流 - 測試 | 20mA |
| 系列 | 1101W |
| 大小/尺寸 | 3.00mm L x 1.50mm W |
| 透鏡樣式/尺寸 | Rectangle with Flat Top, 2mm x 1.5mm |
| 高度 | 1.50mm |
| 視角 | 152°, 141° |
| 波長 - 峰值 | 660nm |
| 波長 - 主 | 647nm |
| 封裝/外殼 | 1206 (3216 Metric) |
| 毫燭光等級 | 12.8mcd |
| 透鏡類型 | Clear |
| 裝配類型 | Surface Mount |
| 顏色 | Red |
