RJF2PEM1G
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e
廠商型號:
RJF2PEM1G
芯天下內部編號:
36-RJF2PEM1G
生產廠商:
amphenol pcd
描述:
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e
產品類別:
Interconnect|Connector Telephone and Telecom

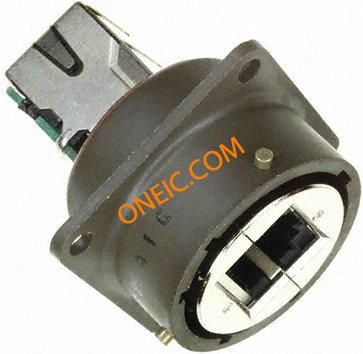

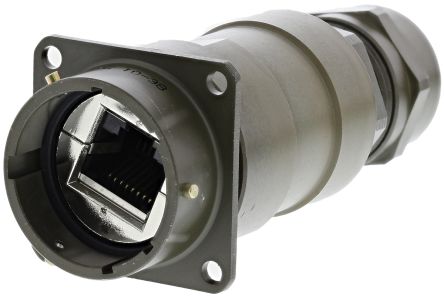

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | RCP |
| Mounting | Jam Nut |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Ratings | Cat5e |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Circular Bayonet Coupling |
| Mounting Type | Free Hanging (In-Line) |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Mounting Feature | Metal Gland |
| Shell Material, Finish | Metal, Olive Drab Cadmium Plated |
| Operating Temperature | -40°C ~ 85°C |
| Shielding | Unshielded |
| rohs | Lead free / RoHS Compliant |
| Depth | 41.3mm |
| Length | 82mm |
| Orientation | Straight |
| Mounting Style | Panel |
| Mounting Angle | Straight |
| Product Category | Modular Connectors / Ethernet Connectors |
| USOC Codes | RJ45 |
| IP Rating | IP 67 |
| Color | Olive Drab |
| Performance Category | Cat 5e |
| Termination Style | Solder Terminal |
| Housing Material | Metal |
| Number of Ports | 1 |
| Number of Positions / Contacts | 4 |
| Flammability Rating | UL 94 V-0 |
| Series | RJF |
| Part # Aliases | 26H5225 308-0025 |
| RoHS | No |
| Weight (g): | 88.80000 |
| 連接器類型 | RJ45,，插座, 母座 |
| IP 防護等級 | IP68 |
| 安裝類型 | 面板安裝 |
| 區域網路類別 | Cat5e |
| 深度 | 41.3mm |
| 方向 | 直 |
| 長度 | 82mm |
