RJF2PEM2B00
Conn RJ-45 RCP 8 POS Solder ST Panel Mount 8 Terminal 1 Port Cat 5e
廠商型號:
RJF2PEM2B00
芯天下內部編號:
36-RJF2PEM2B00
生產廠商:
amphenol pcd
描述:
Conn RJ-45 RCP 8 POS Solder ST Panel Mount 8 Terminal 1 Port Cat 5e
產品類別:
Interconnect|Connector Telephone and Telecom

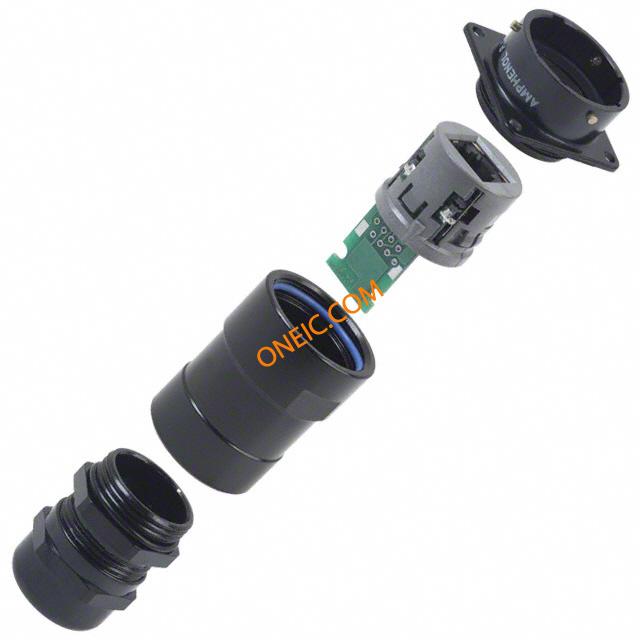

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | RCP |
| Termination Method | Solder |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Product Length | 82 |
| EU RoHS | Compliant |
| Product Depth | 33.3 |
| Category Number | Cat 5e |
| Product Height | 33.3 |
| Number of Ports | 1 |
| Number of Contacts | 8 |
| Number of Loaded Positions | 8 |
| Mounting Angle | Straight |
| Product Category | Modular Connectors / Ethernet Connectors |
| USOC Codes | RJ45 |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Performance Category | Cat 5e, Class D |
| Termination Style | Solder |
| Mounting Style | In Line |
| Flammability Rating | UL 94 V-0 |
| RoHS | RoHS Compliant |
| Weight (g): | 80.80000 |
| Ratings | Cat5e |
| Tab Direction | User Selectable |
| Shielding | Unshielded |
| Mounting Type | Panel Mount, Flange |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Termination | PC Board |
| Connector Type | Jack |
| Packaging | Bulk |
| Operating Temperature | -40°C ~ 85°C |
| LED Color | Does Not Contain LED |
| Features | Circular Bayonet Coupling |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Orientation | Straight |
| Other Names | APC1040 |
| rohs | Lead free / RoHS Compliant |
