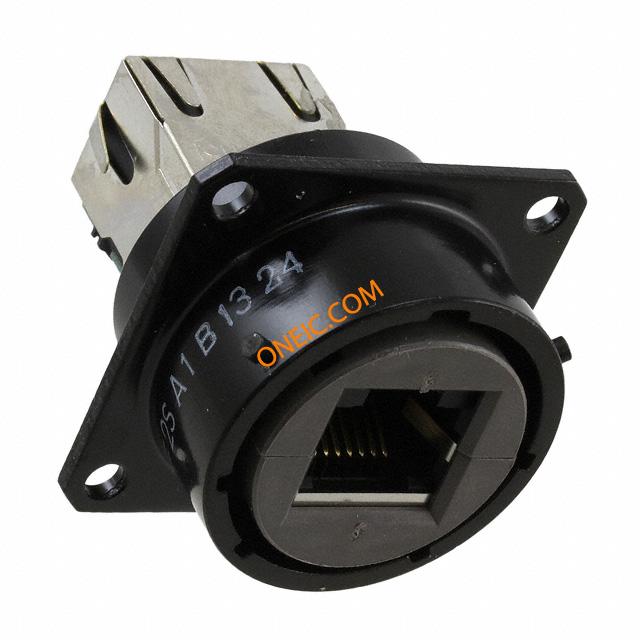

RJF2SA1B
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e
廠商型號:
RJF2SA1B
芯天下內部編號:
36-RJF2SA1B
生產廠商:
amphenol pcd
描述:
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e
產品類別:
Interconnect|Connector Telephone and Telecom
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | RCP |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Ratings | Cat5e |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Circular Bayonet Coupling |
| Mounting Type | Panel Mount, Square Flange |
| Convert To (Adapter End) | PCB |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Shell Material, Finish | Metal |
| Operating Temperature | -40°C ~ 85°C |
| Shielding | Unshielded |
| rohs | Lead free / RoHS Compliant |
| Mounting Angle | Panel |
| Product Category | Modular Connectors / Ethernet Connectors |
| USOC Codes | RJ45 |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Performance Category | Cat 5e, Class D |
| Termination Style | Solder Terminal |
| Mounting Style | Panel |
| Number of Ports | 1 |
| Series | RJF2S |
| Part # Aliases | 20J4006 308-0116 |
| RoHS | RoHS Compliant |
| Weight (g): | 26.00000 |
| 系列 | RJF |
| 轉換至（適配器端） | PCB |
| 裝配類型 | Panel Mount, Square Flange |
| 屏蔽 | Unshielded |
| 外殼材料,，鍍層 | Metal |
| 類型 | Adapter |
| 侵入保護 | IP67 - Dust Tight, Waterproof |
| 轉換自（適配器端） | Jack, 8p8c (RJ45) |
| 等級 | Cat5e |
