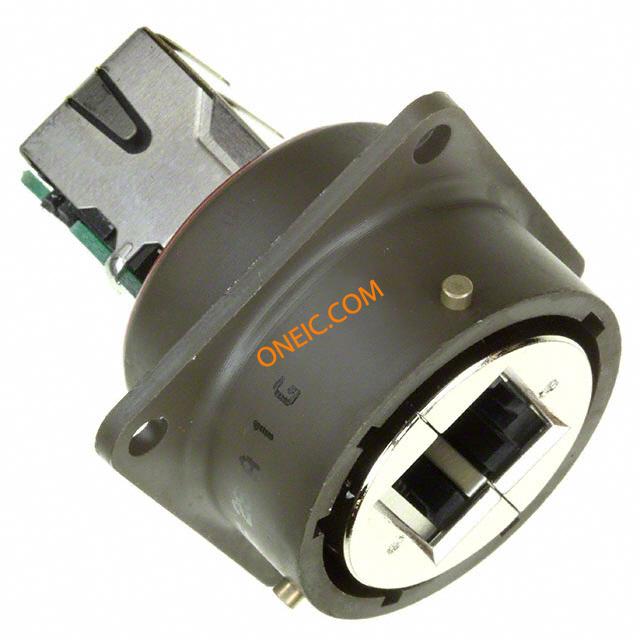

RJF2SA1G
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e
廠商型號:
RJF2SA1G
芯天下內部編號:
36-RJF2SA1G
生產廠商:
amphenol pcd
描述:
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e
產品類別:
Interconnect|Connector Telephone and Telecom
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | RCP |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Ratings | Cat5e |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Circular Bayonet Coupling |
| Mounting Type | Panel Mount, Square Flange |
| Convert To (Adapter End) | PCB |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Shell Material, Finish | Metal, Olive Drab Cadmium Plated |
| Operating Temperature | -40°C ~ 85°C |
| Shielding | Unshielded |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | Panel |
| Mounting Angle | Panel |
| Product Category | Modular Connectors / Ethernet Connectors |
| USOC Codes | RJ45 |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Olive Drab |
| Performance Category | Cat 5e, Class D |
| Termination Style | Solder Terminal |
| Housing Material | Cadmium |
| Series | RJF2S |
| Part # Aliases | 20J4007 308-0118 |
| RoHS | No |
| Connector Type | :RJ45 |
| No. of Contacts | :8 |
| Connector Mounting | :Panel |
| Body Material | :Metal |
| Body Plating | :Olive Drab Cadmium |
| Connector Type | :Sealed Ethernet |
| Weight (kg) | 0.027 |
| Tariff No. | 85366910 |
| Weight (g): | 29.20000 |
