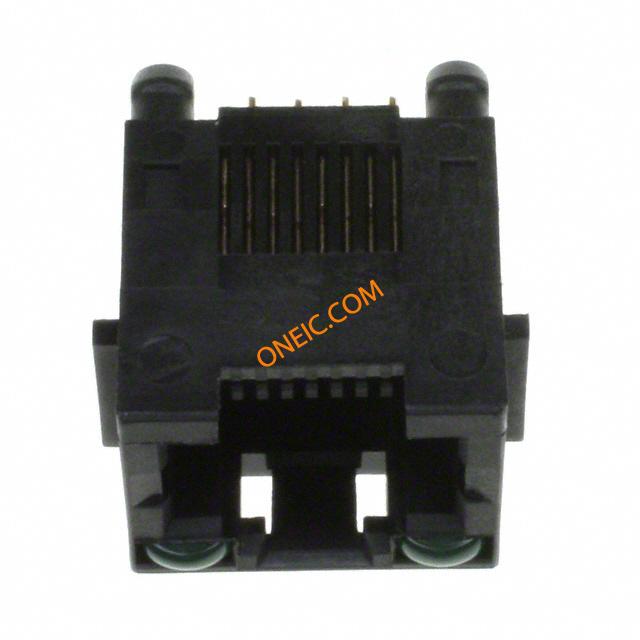

RJHSE-3085
Modular Connectors / Ethernet Connectors CAT 5 MODULAR JACK HIGH TEMP
廠商型號:
RJHSE-3085
芯天下內部編號:
36-RJHSE-3085
生產廠商:
Amphenol Commercial Products
描述:
Modular Connectors / Ethernet Connectors CAT 5 MODULAR JACK HIGH TEMP
產品類別:
Connectors, Interconnects|Modular Connectors - Jacks|RJHSE
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Ratings | Cat5 |
| Tab Direction | User Selectable |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Termination | Solder |
| Standard Package | 100 |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Tray |
| Number of Ports | 1 |
| Operating Temperature | -55°C ~ 85°C |
| LED Color | Green - Green |
| Features | Board Lock, Panel Stops |
| Orientation | Vertical |
| Contact Finish Thickness | 30μin (0.76μm) |
| Housing Material | Thermoplastic |
| Other Names | RJHSE3085 |
| Contact Material | Phosphor Bronze |
| Factory Pack Quantity | 100 |
| Current Rating | 1.5 A |
| Termination Style | Through Hole |
| Insulation Resistance | 500 MOhms |
| Part # Aliases | 39M5488 |
| Type | EMI Quiet Modular Jacks with LEDs |
| Product | Modular Jacks |
| Product Category | Modular Connectors / Ethernet Connectors |
| Voltage Rating | 125 V |
| Number of Positions / Contacts | 8 |
| Contact Plating | Gold |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature Range | - 55 C to + 85 C |
| Gender | Female |
| RoHS | RoHS Compliant |
| Mounting Angle | Vertical |
| USOC Codes | RJ45 |
| Color | Black |
| Series | RJHSE |
| Performance Category | Cat 5 |
| Pitch | 1.27 mm |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| LAN Category | :Cat5 |
| Contact Termination | :Through Hole Vertical |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|

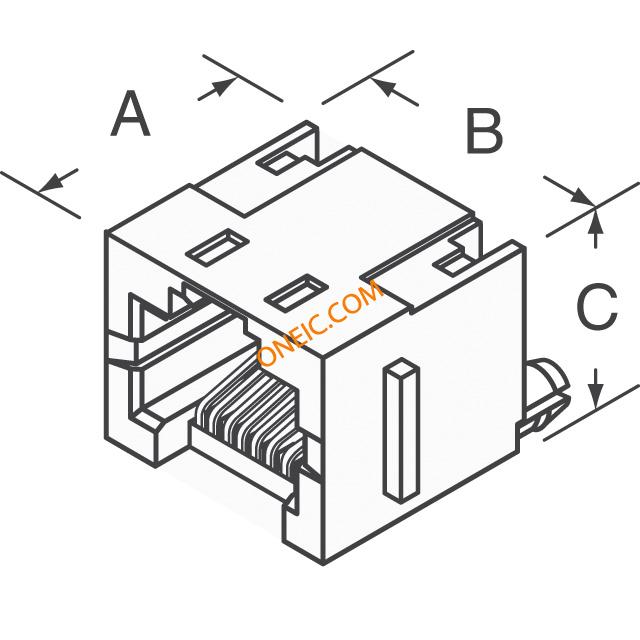

| RJHSE-3080 | Amphenol Commercial Products | Modular Connectors / Ethernet Connectors CAT 5 MODULAR JACK HIGH TEMP | 查看詳情 |
