RJHSE-3381
Conn RJ-45 F 8 POS 2.03mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 5
廠商型號:
RJHSE-3381
芯天下內部編號:
36-RJHSE-3381
生產廠商:
amphenol canada, corp.
描述:
Conn RJ-45 F 8 POS 2.03mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 5
產品類別:
Interconnect|Connector Telephone and Telecom

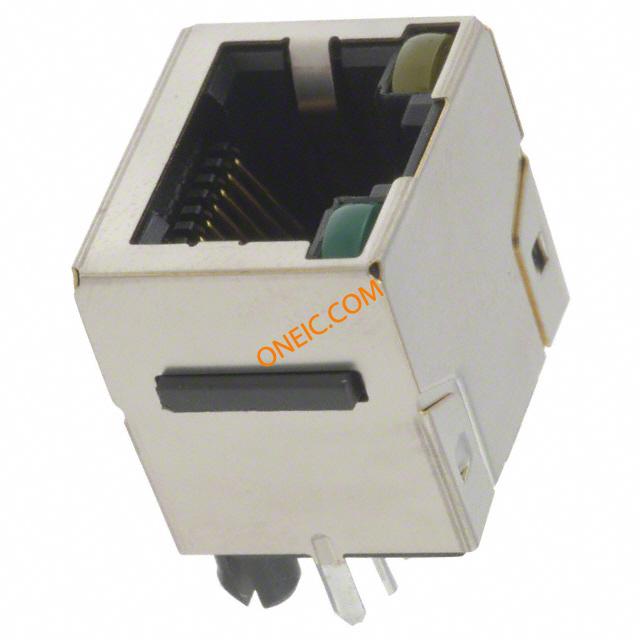

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | RJ-45 |
| Gender | F |
| Number of Contacts | 8 |
| Pitch | 2.03 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Standard Package | Trays |
| Ratings | Cat5 |
| Tab Direction | User Selectable |
| Shielding | Shielded |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Termination | Solder |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Tray |
| Number of Ports | 1 |
| Operating Temperature | -55°C ~ 85°C |
| LED Color | Yellow - Green |
| Features | Board Lock, Panel Stops |
| Orientation | Vertical |
| Contact Finish Thickness | 30μin (0.76μm) |
| Housing Material | Thermoplastic |
| Other Names | RJHSE3381 |
| Contact Material | Phosphor Bronze |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 100 |
| Current Rating | 1.5 A |
| Termination Style | Through Hole |
| Insulation Resistance | 500 MOhms |
| Part # Aliases | 39M5491 |
| Product | Modular Jacks |
| Product Category | Modular Connectors / Ethernet Connectors |
| Voltage Rating | 125 V |
| Number of Positions / Contacts | 8 |
| Contact Plating | Gold |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature Range | - 55 C to + 85 C |
| RoHS | RoHS Compliant |
| Mounting Angle | Vertical |
| USOC Codes | RJ45 |
| Color | Black |
| Series | RJHSE |
| Performance Category | Cat 5 |
| Positions Loaded | 8 |
| Contact Resistance Max | 20 mohm |
| Current Rating (Max) | 1.5 A |
| Mounting Style | Through Hole |
| Product Length (mm) | 16.51 mm |
| Product Depth (mm) | 13.59 mm |
| Product Height (mm) | 15.88 mm |
| Voltage Rating Max | 125VAC |
| Pitch (mm) | 2.03 mm |
| Category Number | Cat 5 |
| Family | RJHSE |
| DELETED | Compliant |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| LAN Category | :Cat5 |
| Contact Termination | :Through Hole Right Angle |
| Weight (kg) | 0.62 |
| Tariff No. | 85366910 |
| Electrical mounting | THT |
| Connector | socket |
| Multiplicity | 1 |
| Spatial orientation | straight |
| Type of pin configuration | 8p8c |
| Connector type | RJ45 |
| Gross weight | 5.71 g |
| Ethernet category | Cat 5 |
| Collective package [pcs] | 100 |
| spg | 100 |
