VLMS333T2V2-GS08
LED Uni-Color Red 639nm 2-Pin PLCC T/R
廠商型號:
VLMS333T2V2-GS08
芯天下內部編號:
5-VLMS333T2V2-GS08
生產廠商:
Vishay
描述:
LED Uni-Color Red 639nm 2-Pin PLCC T/R
產品類別:
Displays & Optoelectronics|LEDs & LED Accessories|Visible LEDs
客戶編號:
規格書:
查看PDF

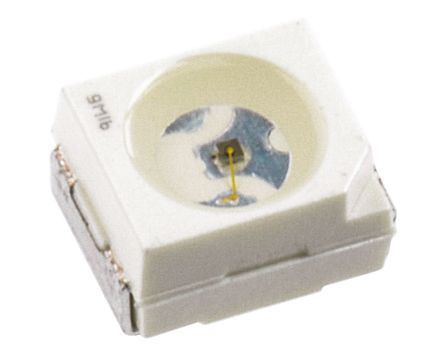

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Dominant Wavelength | 630 |
| Mounting | Surface Mount |
| Maximum Forward Current | 50 |
| Package Width | 2.8 |
| PCB | 2 |
| Maximum Power Dissipation | 130 |
| Type | Uni-Color |
| Viewing Angle | 120 |
| Reverse Voltage | 5 |
| Maximum Forward Voltage per Color | 2.6 |
| Peak Wavelength | 639 |
| Minimum Operating Temperature | -40 |
| LED Material | AlGaInP |
| Lens Dimensions | 2.4x2.4x0.85 |
| Supplier Package | PLCC |
| Standard Package Name | PLCC |
| Mounting Orientation | Top Mount |
| Maximum Operating Temperature | 100 |
| Number of LEDs | 1 |
| Package Length | 3 |
| Pin Count | 2 |
| Color | Red |
| Packaging | Tape and Reel |
| Intensity | 550mcd |
| Lens Shape Type | Circular |
| High Brightness | No |
| Lead Shape | J-Lead |
| Unit Pack | 1500 |
| MOQ | 7500 |
| Series | * |
| Standard Package | 1,500 |
| rohs | Lead free / RoHS Compliant |
| Dominant Wavelength | 639 nm |
| Forward Voltage | 2.6 V |
| LED Colours | Red |
| Lens Shape | Circular |
| Luminous Flux | 3 mlm |
| Luminous Intensity | 1120 mcd |
| Mounting Type | PCB Surface Mount |
| Number of Pins | 2 |
| Package Size | 3 x 2.8 x 1.75mm |
| Bulb Size | :- |
| LED Colour | :Red |
| Viewing Angle | :120° |
| Forward Current If | :20mA |
| LED Mounting | :SMD |
| Wavelength Typ | :630nm |
| Weight (kg) | 0.00003 |
| Tariff No. | 85414010 |
| Luminous Flux @ Current - Test | 0.003lm |
| Lens Style/Size | Round with Flat Top, 2.4mm |
| Wavelength - Dominant | 630nm |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Millicandela Rating | 355mcd ~ 1120mcd |
| Wavelength - Peak | 639nm |
| Package / Case | 2-SMD, J-Lead |
| Current - Test | 20mA |
| Voltage - Forward (Vf) (Typ) | 2V |
| Height | 1.85mm |
| Lens Type | Clear |
