4304.4004
Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse Straight/Right Angle 1 Port
廠商型號:
4304.4004
芯天下內部編號:
289-4304-4004
生產廠商:
schurter
描述:
Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse Straight/Right Angle 1 Port
產品類別:
Interconnect|Power Entry Module

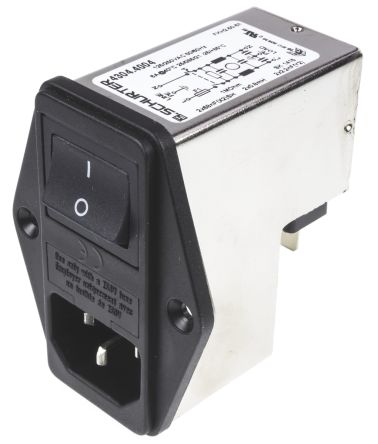

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Contacts | 3 |
| Maximum Voltage Rating | 250 Vac |
| Connector Type | IEC/EN 60320-1/C14 |
| Standard Package | Bulk |
| Matchcode | 43044004 |
| Unit Pack | 10 |
| Standard Leadtime | 8 weeks |
| MOQ | 10 |
| Current | 6A |
| Leadfree Defin. | RoHS-conform |
| Version | 2 POLE |
| Voltage | 250V |
| Automotive | NO |
| Features | Fuse Holder, Shielded, Switch On/Off, Non-Illuminated |
| Mounting Type | Panel Mount, Screw Hole |
| Termination Style | Quick Connect |
| Fuse Drawer | Included |
| Filter Type | General Purpose |
| Type | IEC 320-C14 (Male Pins) |
| rohs | Lead free / RoHS Compliant |
| Current Rating | 6A |
| Depth | 55mm |
| Gender | Male |
| Height | 65mm |
| IEC Connector Type | C14 |
| Voltage Rating | 250 Vac |
| Width | 50mm |
| Housing Material | Thermoplastic |
| Product | Inlets |
| Fused | Yes |
| Filtered | Yes |
| Series | FKH |
| Switch Function | Switched |
| Mounting Style | Panel |
| Operating Temperature Range | - 25 C to + 85 C |
| Factory Pack Quantity | 10 |
| Unit Weight | 4.232875 oz |
| Operating Temp Range | -25C to 85C |
| Number of Ports | 1 Port |
| Current Rating (Max) | 6 A |
| Total Number of Contacts | 3 POS |
| Body Orientation | Straight/Right Angle |
| Product Length (mm) | 50 mm |
| Product Depth (mm) | 55 mm |
| Product Height (mm) | 65 mm |
| Voltage Rating Max | 250VAC |
| Additional Hardware | Switch/Fuse |
| Leakage Current Max | :0.25mA |
| Capacitance | :0.068μF |
| Inductance Min | :800μH |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :EN, IEC, UL |
| Capacitance X | :68nF |
| Capacitance Y | :2.2nF |
| External Depth | :55mm |
| External Length / Height | :65mm |
| External Width | :50mm |
| Fuse Size Held | :5mm x 20mm |
| Inductance | :0.8mH |
| Leakage Current | :0.25mA |
| No. of Fuses | :1 |
| No. of Inductors | :2 |
| No. of Phases | :Single |
| No. of X Type Capacitors | :2 |
| No. of Y Type Capacitors | :2 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-25°C |
| Supply Frequency Max | :60Hz |
| Supply Frequency Min | :50Hz |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.14 |
| Tariff No. | 85369010 |
| Electrical mounting | 6.3mm connectors |
| Mechanical mounting | flange (2 holes), for panel mounting |
| Rated current | 6A |
| Multiplicity | 1 |
| Contacts configuration | DPST |
| Capacitance Cy | 2.2nF |
| Resistance | 1MΩ |
| Connector type | male |
| Connector | socket |
| Gross weight | 0.14 kg |
| Connector series | FKH |
| Capacitance Cx | 68nF |
| Rated voltage | 250V AC |
| Collective package [pcs] | 10 |
| Schematic diagram | see |
| spg | 10 |
