4304.4025

Power Entry Module Filtered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port

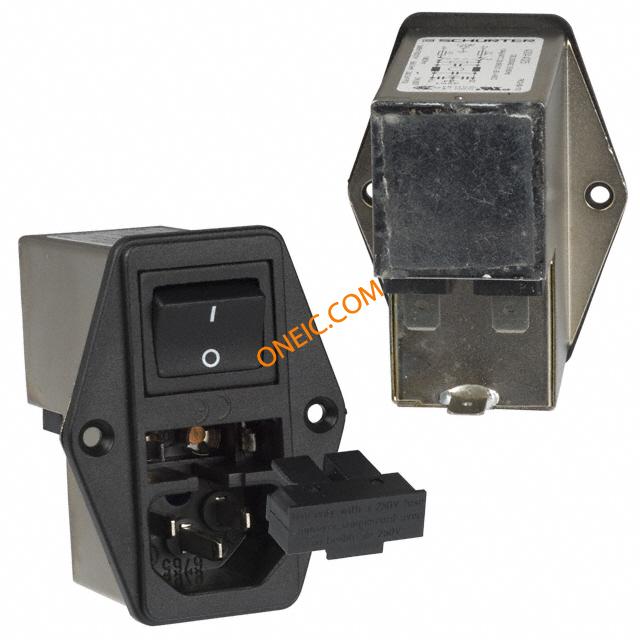

Thumbnail 4304.4025 Thumbnail 4304.4025 Thumbnail 4304.4025
廠商型號: 4304.4025
芯天下內部編號: 289-4304-4025
生產廠商:
schurter schurter
描述: Power Entry Module Filtered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port
產品類別: Interconnect|Power Entry Module
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。

庫存與訂購

庫存: 0
庫存獲取中,，請稍候....

產品參數

參數類型 參數值
Type Filtered
Number of Contacts 3
Maximum Voltage Rating 250 Vac
Termination Method Faston
Mounting Flange Mount
Connector Type IEC/EN 60320-1/C14|UL 498|CSA C22.2
Standard Package Bulk
Unit Pack 10
MOQ 10
Features Fuse Holder, Shielded, Switch On/Off, Non-Illuminated
Mounting Type Panel Mount, Screw Hole
Termination Style Quick Connect
Current 10A
Fuse Drawer Included
Voltage 125/250VAC
Filter Type General Purpose
rohs Lead free / RoHS Compliant
Current Rating 10A
Depth 55mm
Gender Male
Height 65mm
IEC Connector Type C14
Voltage Rating 250 Vac
Width 50mm
Factory Pack Quantity 10
Product Inlets
Product Category AC Power Entry Modules
Housing Material Thermoplastic
Series FKI
Operating Temperature Range - 25 C to + 85 C
Unit Weight 4.585615 oz
Mounting Style Screw
Switch Function Switched
Flammability Rating UL 94 V-0
Fused Yes
Filtered Yes
RoHS RoHS Compliant
Leakage Current Max :250μA
Capacitance :68nF
Inductance Min :300μH
Filter Terminals :Quick Connect
SVHC :No SVHC (20-Jun-2013)
Capacitance X :68nF
Capacitance Y :2.2nF
Weight (kg) 0.13
Tariff No. 85363090
Capacitance,Cx 68nF
Capacitance,Cy 2.2nF
Current,Leakage <0.25mA
Current,Rating 10A
CutOut,Panel 29.5×61mm
DielectricStrength >1.7kVDC(L-N),>2.7kVDC(L/N-PE)
FilterType ACLine,IEC,Inlet
Inductance 2×0.3mH
Material,Housing Thermoplastic
MountMethod Front
MountingType Panel/Screw-On
NumberofPoles 2
Resistance 1Megohms
Temperature,Operating -25to+85°C
Termination QuickConnect
Thickness,Panel 8mm
Version Standard
Voltage,Rating 125VAC(UL/CSA),250VAC(IEC)
