4304.5003

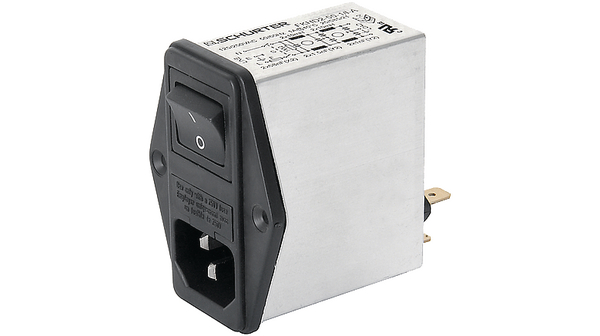

Power Entry Module Filtered M 3 POS 250VAC 4A Switch/Fuse ST 1 Port

廠商型號: 4304.5003
芯天下內部編號: 289-4304-5003
生產廠商:
schurter schurter
描述: Power Entry Module Filtered M 3 POS 250VAC 4A Switch/Fuse ST 1 Port
產品類別: Interconnect|Power Entry Module
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中,，請稍候....

產品參數

參數類型 參數值
Type Filtered
Number of Contacts 3
Maximum Voltage Rating 250 Vac
Termination Method Solder Lug
Mounting Flange Mount
Connector Type IEC/EN 60320-1/C14|UL 498|CSA C22.2
Standard Package Bulk
Unit Pack 10
MOQ 10
Features Fuse Holder, Shielded, Switch On/Off, Non-Illuminated
Mounting Type Panel Mount, Screw Hole
Termination Style Quick Connect
Current 4A
Fuse Drawer Included
Voltage 125/250VAC
Filter Type General Purpose
rohs Lead free / RoHS Compliant
Factory Pack Quantity 10
Product Inlets
Product Category AC Power Entry Modules
Current Rating 4 A
Housing Material Thermoplastic
Voltage Rating 250 V
Series FKHD
Operating Temperature Range - 25 C to + 85 C
Unit Weight 5.679108 oz
Mounting Style Screw
Switch Function Switched
Flammability Rating UL 94 V-0
Filtered Yes
Fused Yes
RoHS RoHS Compliant
系列 FKHD
端接樣式 Quick Connect
特性 Fuse Holder, Shielded, Switch On/Off, Non-Illuminated
保險絲抽屜 Included
電壓 125/250VAC
濾波器類型 General Purpose
電流 4A
Termination type Faston 6.3 x 0.8 mm
IEC-climate category 25/085/21
Capacitance, CX 68 nF
Capacitance, CY Cy1:1.5 nF(Cy2: 1 nF)
Rated current 4 A
Protection class I
Resistance 1
Fitting Front mounting
Leakage current <250 μA
Rated voltage 250
Temperature range -25...+85 °C
Protection rating IP 40 front panel
Rated inductance 1.5 mH(2x)
