BRPY1201W-TR
LED Bi-Color Red/Yellow Green 660nm/570nm 4-Pin SMD T/R
廠商型號:
BRPY1201W-TR
芯天下內部編號:
393-BRPY1201W-TR
生產廠商:
Stanley Electric
描述:
LED Bi-Color Red/Yellow Green 660nm/570nm 4-Pin SMD T/R
產品類別:
Optoelectronics|LED Indication - Discrete|1201W

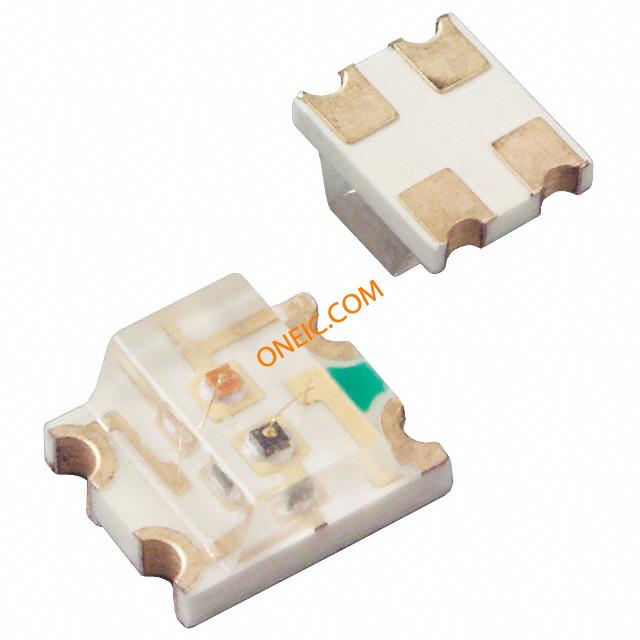

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Dominant Wavelength | 647/572 |
| Maximum Forward Current | 30 |
| Screening Level | Industrial |
| Maximum Power Dissipation | 75 |
| Type | Bi-Color |
| Viewing Angle | 160/150|156/149 |
| Reverse Voltage | 4 |
| EU RoHS | Compliant |
| Lens Appearance | Colorless Non Diffused |
| Maximum Forward Voltage per Color | 2/2.5 |
| Peak Wavelength | 660/570 |
| Minimum Operating Temperature | -30 |
| LED Material | GaAlAs|GaP |

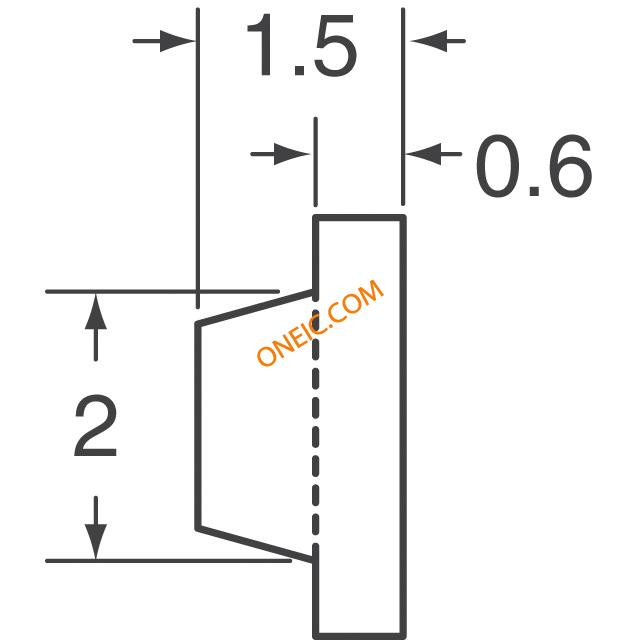

| Lens Dimensions | 2x1.5x0.9 |
| Supplier Package | SMD |
| Standard Package Name | SMD |
| Mounting Orientation | Top Mount |
| Maximum Operating Temperature | 85 |
| Number of LEDs | 2 |
| Pin Count | 4 |
| Color | Red/Yellow Green |
| Packaging | Tape and Reel |
| Intensity | 12.8mcd|8mcd |
| Lens Shape Type | Rectangular |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 2.1V Green, 1.7V Red |
| Mounting Type | Surface Mount |
| Lens Style/Size | Rectangle with Flat Top, 2.5mm x 2mm |
| Viewing Angle | 156°, 149° Green-Yellow, 160°, 150° Red |
| Wavelength - Dominant | 572nm, 647nm |

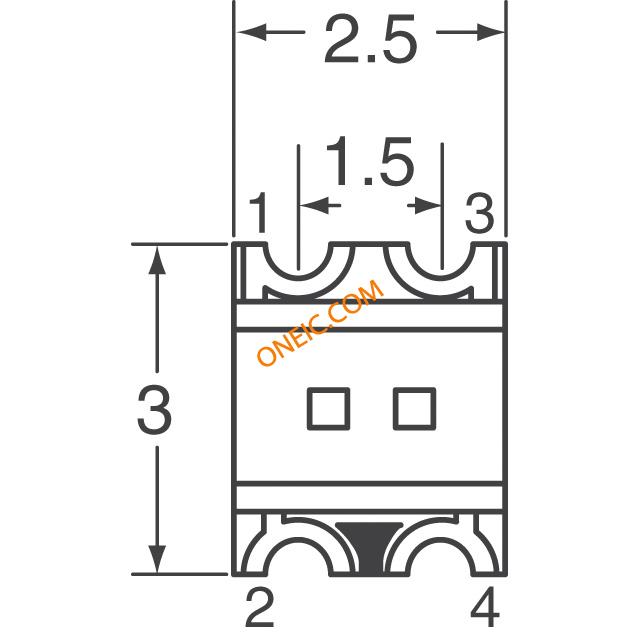

| Size / Dimension | 3.00mm L x 2.50mm W |
| Millicandela Rating | 8mcd Green, 12.8mcd Red |
| Wavelength - Peak | 570nm, 660nm |
| Standard Package | 2,500 |
| Current - Test | 20mA |
| Height | 1.40mm |
| Lens Type | Clear |
| Package/Case | 1208 (3020 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 404-1078-1 |
| Emitting Color | Red/Yellow Green |
| Lum Intensity | 12.8/8mcd |
| Power Dissipation | 75 W |
| Mounting | Surface Mount |
| Operating Temp Range | -30C to 85C |
| Package Type | SMD |
| Peak Wavelength | 660/570 nm |
| Shape Type | Rectangular |
| Number of Elements | 2 |
| Operating Temperature Classification | Commercial |
| Forward Voltage | 2/2.5 V |
| Forward Current | 30 mA |
| Reverse Voltage | 4 V |
| Lens Dimensions | 2x1.5x0.9 mm |
| Dominant Wave Length | 647/572 nm |
| Test Current (It) | 20 mA |
| Chip Material | GaAlAs/GaP |
| Main Category | Chip LED |
| Rad Hardened | No |
| Product Depth (mm) | 3 mm |
| Product Height (mm) | 1.5 mm |
| Product Length (mm) | 2.5 mm |
| Luminous Intensity | 12.8/8mcd |
| DELETED | Compliant |
| 電流 - 測試 | 20mA |
| 系列 | 1201W |
| 大小/尺寸 | 3.00mm L x 2.50mm W |
| 透鏡樣式/尺寸 | Rectangle with Flat Top, 2.5mm x 2mm |
| 高度 | 1.40mm |
| 視角 | 156°, 149° Green-Yellow, 160°, 150° Red |
| 波長 - 峰值 | 570nm, 660nm |
| 波長 - 主 | 572nm, 647nm |
| 封裝/外殼 | 1208 (3020 Metric) |
| 毫燭光等級 | 8mcd Green, 12.8mcd Red |
| 透鏡類型 | Clear |
| 裝配類型 | Surface Mount |
| 顏色 | Green, Red |
