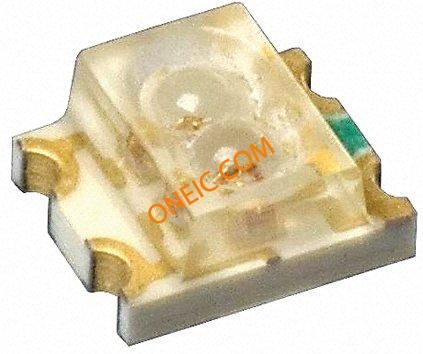

BRPY1204W-TR
LED RED/YEL-GRN BI-C0L0R SMD
廠商型號:
BRPY1204W-TR
芯天下內部編號:
393-BRPY1204W-TR
生產廠商:
Stanley Electric Co
描述:
LED RED/YEL-GRN BI-C0L0R SMD
產品類別:
Optoelectronics|LED Indication - Discrete|1204W
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Voltage - Forward (Vf) Typ | 2.1V Green, 1.7V Red |
| Mounting Type | Surface Mount |
| Lens Style/Size | Rectangle with Flat Top, 2.5mm x 2mm |
| Color | Green, Red |
| Viewing Angle | 100°, 88° Green-Yellow, 80°, 80° Red |
| Wavelength - Dominant | 572nm, 647nm |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Millicandela Rating | 24mcd Green, 33.6mcd Red |
| Packaging | Tape & Reel (TR) |
| Wavelength - Peak | 570nm, 660nm |
| Standard Package | 2,500 |
| Current - Test | 20mA |
| Height | 1.50mm |
| Lens Type | Clear |
| Package/Case | 1208 (3020 Metric) |
| Other Names | 404-1081-1 |
| rohs | Lead free / RoHS Compliant |
| Dominant Wavelength | 572 nm, 647 nm |
| Forward Voltage | 2 V, 2.5 V |
| LED Material | GaAlAs, GaP |
| Lens Shape | Circular |
| Luminous Intensity | 33.6 mcd |
| Number of LEDs | 2 |
| Number of Pins | 4 |
| Package Size | 3 x 2.5mm |
| 透鏡形狀 | 圓形 |
| 視角 | 100/88 °,，80 ° |
| 系列 | 1204W |
| LED 數目 | 2 |
| 光強度 | 34 mcd |
| 安裝類型 | 表面安裝 |
| LED 材料 | GaAlAs,；GaP |
| 封裝類型 | 3025 (1210) |
| 針數目 | 4 |
| 正向電壓 | 2 V，2.5 V |
| 尺寸 | 3 x 2.5mm |
| 透鏡顏色 | 透明 |
| LED 顏色 | 紅色,，黃色,，綠色 |
| 主波長 | 572 / 647 nm |
