BRPY1211F-TR
LED Bi-Color Red/Yellow Green 660nm/570nm 3-Pin SMD T/R
廠商型號:
BRPY1211F-TR
芯天下內部編號:
393-BRPY1211F-TR
生產廠商:
Stanley Electric
描述:
LED Bi-Color Red/Yellow Green 660nm/570nm 3-Pin SMD T/R
產品類別:
Optoelectronics|LED Indication - Discrete|1211F

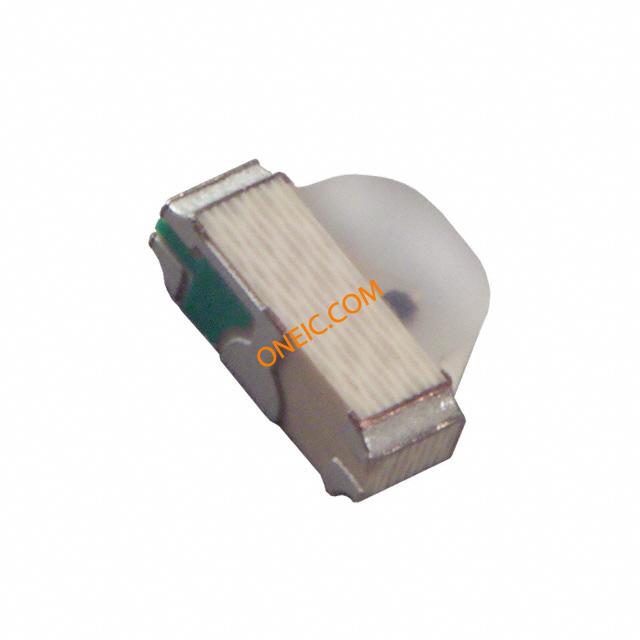

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Dominant Wavelength | 647/572 |
| Mounting | Surface Mount |
| Maximum Forward Current | 25 |
| Package Width | 2 |
| PCB | 3 |
| Maximum Power Dissipation | 70 |
| Type | Bi-Color |
| Viewing Angle | 149/143|148/140 |
| Reverse Voltage | 4 |
| EU RoHS | Compliant |
| Lens Appearance | Colorless |
| Maximum Forward Voltage per Color | 2.3/2.8 |
| Peak Wavelength | 660/570 |
| Minimum Operating Temperature | -40 |
| LED Material | GaAlAs|GaP |
| Lens Dimensions | 2x1x1 |
| Supplier Package | SMD |
| Standard Package Name | SMD |
| Mounting Orientation | Right Angle |
| Maximum Operating Temperature | 85 |
| Number of LEDs | 2 |
| Package Length | 3 |
| Pin Count | 3 |
| Color | Red/Yellow Green |
| Packaging | Tape and Reel |
| Package Height | 1 |
| Intensity | 17.6mcd|8.8mcd |
| Lens Shape Type | Rectangular |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 2.1V Green, 1.7V Red |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style/Size | Rectangle with Domed Top, 2mm x 1mm |
| Viewing Angle | 148°, 140° Green-Yellow, 149°, 143° Red |
| Wavelength - Dominant | 572nm, 647nm |

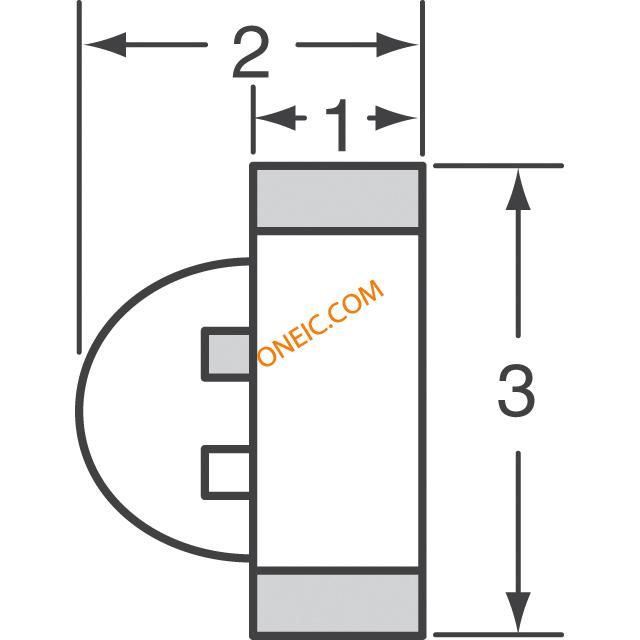

| Size / Dimension | 3.00mm L x 2.00mm W |
| Millicandela Rating | 8.8mcd Green, 17.6mcd Red |
| Wavelength - Peak | 570nm, 660nm |
| Standard Package | 3,000 |
| Current - Test | 20mA |
| Height | 1.00mm |
| Lens Type | Diffused, White |
| Package/Case | 1208 (3020 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 404-1089-1 |
| Emitting Color | Red/Yellow Green |
| Lum Intensity | 17.6/8.8mcd |
| Power Dissipation | 70 W |
| Operating Temp Range | -40C to 85C |
| Peak Wavelength | 660/570 nm |
| Shape Type | Rectangular |
| Number of Elements | 2 |
| Operating Temperature Classification | Industrial |
| Forward Voltage | 2.3/2.8 V |
| Forward Current | 25 mA |
| Reverse Breakdown Voltage | 4 V |
| Lens Dimensions | 2x1x1 mm |
| Dominant Wave Length | 647/572 nm |
| Chip Material | GaAlAs/GaP |
| Main Category | Chip LED |
| Rad Hardened | No |
| Package Type | SMD |
| Reverse Voltage | 4 V |
| Test Current (It) | 20 mA |
| Product Depth (mm) | 2 mm |
| Product Height (mm) | 1 mm |
| Product Length (mm) | 3 mm |
| Luminous Intensity | 17.6/8.8mcd |
| DELETED | Compliant |
