BRPY1211C-TR
LED Bi-Color Red/Yellow Green 660nm/570nm 4-Pin SMT T/R
廠商型號:
BRPY1211C-TR
芯天下內部編號:
393-BRPY1211C-TR
生產廠商:
Stanley Electric
描述:
LED Bi-Color Red/Yellow Green 660nm/570nm 4-Pin SMT T/R
產品類別:
Optoelectronics|LED Indication - Discrete|1211C

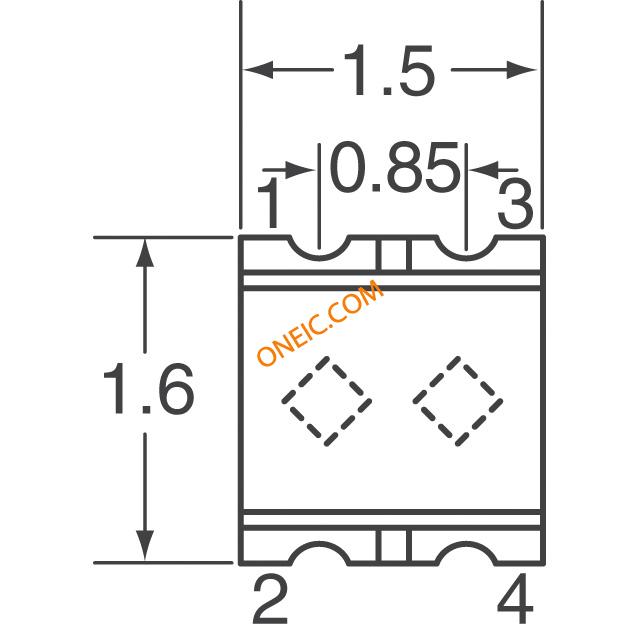

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Dominant Wavelength | 647/572 |
| Maximum Forward Current | 25 |
| Maximum Power Dissipation | 70 |
| Type | Bi-Color |
| Viewing Angle | 150/140|168/139 |
| Reverse Voltage | 4 |
| EU RoHS | Compliant |
| Lens Appearance | Colorless Diffused |
| Maximum Forward Voltage per Color | 2.3/2.8 |
| Peak Wavelength | 660/570 |
| Minimum Operating Temperature | -30 |
| LED Material | GaAlAs|GaP |
| Lens Dimensions | 1.2x1.5x0.5 |
| Supplier Package | SMT |
| Standard Package Name | SMD |
| Mounting Orientation | Top Mount |
| Maximum Operating Temperature | 85 |
| Number of LEDs | 2 |
| Pin Count | 4 |
| Color | Red/Yellow Green |
| Packaging | Tape and Reel |
| Intensity | 11.7mcd |
| Lens Shape Type | Rectangular |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 2.1V Green, 1.7V Red |
| Mounting Type | Surface Mount |
| Lens Style/Size | Rectangle with Flat Top, 1.5mm x 1.2mm |
| Viewing Angle | 168°, 139° Green-Yellow, 150°, 140°, Red |
| Wavelength - Dominant | 572nm, 647nm |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Millicandela Rating | 11.7mcd Green, 11.7mcd Red |
| Wavelength - Peak | 570nm, 660nm |
| Standard Package | 4,000 |
| Current - Test | 20mA |
| Height | 0.70mm |
| Lens Type | Diffused, White |
| Package/Case | 0606 (1616 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 404-1085-1 |
| Emitting Color | Red/Yellow Green |
| Lum Intensity | 11.7mcd |
| Power Dissipation | 70 W |
| Mounting | Surface Mount |
| Operating Temp Range | -30C to 85C |
| Package Type | SMT |
| Peak Wavelength | 660/570 nm |
| Shape Type | Rectangular |
| Number of Elements | 2 |
| Operating Temperature Classification | Commercial |
| Forward Voltage | 2.3/2.8 V |
| Forward Current | 25 mA |
| Reverse Voltage | 4 V |
| Lens Dimensions | 1.2x1.5x0.5 mm |
| Dominant Wave Length | 647/572 nm |
| Test Current (It) | 20 mA |
| Chip Material | GaAlAs/GaP |
| Main Category | Chip LED |
| Rad Hardened | No |
| Product Depth (mm) | 1.6 mm |
| Product Height (mm) | 0.7 mm |
| Product Length (mm) | 1.5 mm |
| Luminous Intensity | 11.7mcd |
| DELETED | Compliant |
