HLMP-1301-E0002
LED Uni-Color Red 635nm 2-Pin T-1 T/R
廠商型號:
HLMP-1301-E0002
芯天下內部編號:
9-HLMP-1301-E0002
生產廠商:
avago technologies

描述:
LED Uni-Color Red 635nm 2-Pin T-1 T/R
產品類別:
Lighting|LEDs

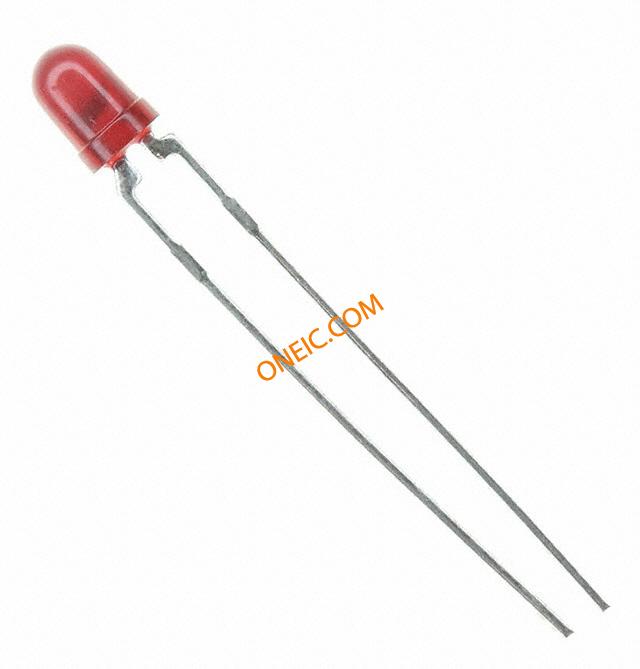

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
Package | 2T-1 |
Pin Count | 2 |
Type | Uni-Color |
Number of LEDs | 1 |
Intensity | 3.4(Min) mcd |
Dominant Wavelength/Color Temperature | 626 nm |
Peak Wavelength | 635 nm |
Color | Red |
Lens Appearance | Colored Diffused |
Lens Shape Type | Circular |
Viewing Angle | 60 ° |
Mounting Orientation | Top Mount |
Mounting | Through Hole |
Standard Package | Tape & Reel |
Product Category | Standard LEDs - Through Hole |
RoHS | RoHS Compliant |
Illumination Color | Red |
Luminous Intensity | 3.4 mcd |
Wavelength/Color Temperature | 635 nm |
Lens Color/Style | Tinted, Diffused |
Forward Current | 10 mA |
Forward Voltage | 1.9 V |
LED Size | T-1 |
Packaging | Reel |
Lens Dimensions | 3 mm |
Lens Shape | Dome |
Maximum Operating Temperature | + 100 C |
Minimum Operating Temperature | - 40 C |
Mounting Style | Through Hole |
Factory Pack Quantity | 1800 |
Dominant Wavelength | 626 |
PCB | 2 |
Maximum Forward Current | 30 |
Viewing Angle | 60 |
Reverse Voltage | 5 |
EU RoHS | Compliant |
Maximum Forward Voltage per Color | 2.4 |
Peak Wavelength | 635 |
Minimum Operating Temperature | -40 |
LED Material | GaAsP |
Lens Dimensions | 3.43x3.43x4.7 |
Supplier Package | T-1 |
Standard Package Name | T-1 |
Maximum Operating Temperature | 100 |
Package Diameter | 3.43(Max) |
Package Height | 4.7(Max) |
High Brightness | No |
Lead Shape | Through Hole |
Voltage - Forward (Vf) Typ | 1.9V |
Mounting Type | Through Hole |
Lens Style/Size | Round with Domed Top, 3mm, T-1 |
Wavelength - Dominant | 626nm |
Millicandela Rating | 3.4mcd |
Wavelength - Peak | 635nm |
Current - Test | 10mA |
Height | 4.70mm |
Lens Type | Diffused, Tinted |
Package/Case | Radial |
rohs | Not applicable / Not applicable |
Other Names | 516-1750-1 |
Emitting Color | Red |
Lum Intensity | 3.4mcd |
Operating Temp Range | -40C to 100C |
Package Type | T-1 |
Shape Type | Circular |
Number of Elements | 1 |
Operating Temperature Classification | Industrial |
Reverse Voltage | 5 V |
Dominant Wave Length | 626 nm |
Test Current (It) | 10 mA |
Chip Material | GaAsP |
Main Category | Standard LED |
Rad Hardened | No |
Product Depth (mm) | 3.43 mm |
Product Height (mm) | 4.7 mm |
Product Length (mm) | 3.43 mm |
DELETED | Compliant |
電流 - 測試 | 10mA |
透鏡樣式/尺寸 | Round with Domed Top, 3mm, T-1 |
高度 | 4.70mm |
視角 | 60° |
波長 - 峰值 | 635nm |
波長 - 主 | 626nm |
封裝/外殼 | Radial |
毫燭光等級 | 3.4mcd |
透鏡類型 | Diffused, Tinted |
裝配類型 | Through Hole |
顏色 | Red |
