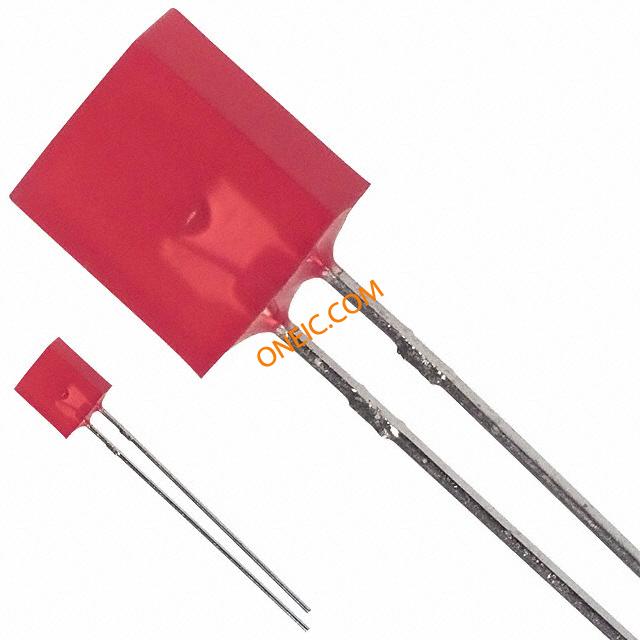

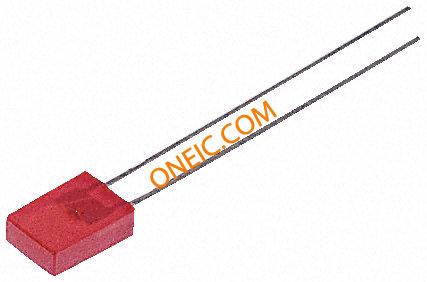

HLMP-0301
LED Uni-Color Red 635nm 2-Pin
廠商型號:
HLMP-0301
芯天下內部編號:
9-HLMP-0301
生產廠商:
avago technologies
描述:
LED Uni-Color Red 635nm 2-Pin
產品類別:
Lighting|LEDs
所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 2.1(Min) mcd |
| Dominant Wavelength/Color Temperature | 626 nm |
| Peak Wavelength | 635 nm |
| Color | Red |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Rectangular |
| Viewing Angle | 100 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red |
| Luminous Intensity | 2.1 mcd |
| Wavelength/Color Temperature | 626 nm |
| Lens Color/Style | Tinted, Diffused |

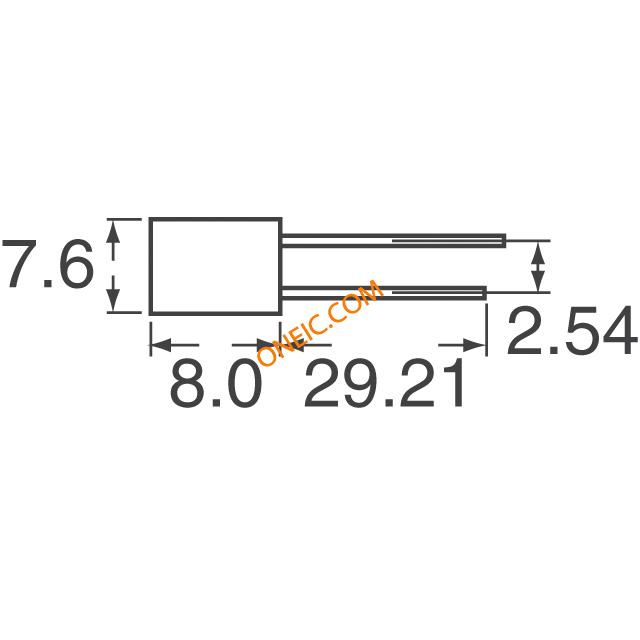

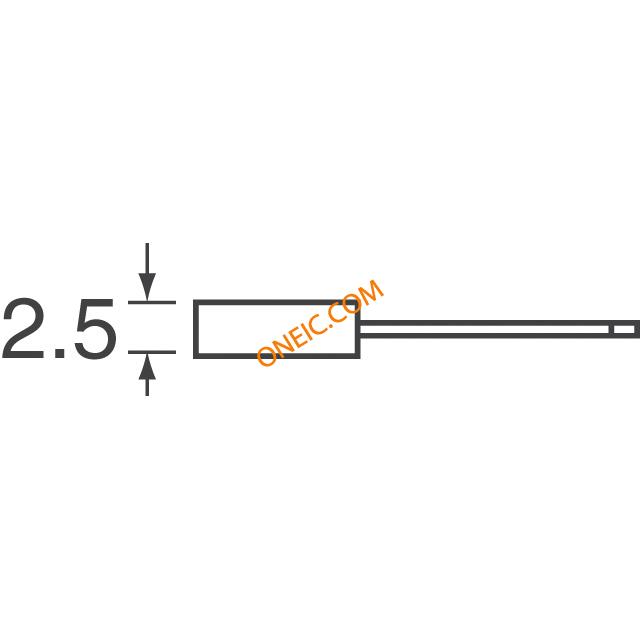

| LED Size | 2.5 mm x 7.6 mm |
| Packaging | Bulk |
| Lens Dimensions | 2.5 mm x 7.6 mm |
| Lens Shape | Rectangular |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 2000 |
| Voltage - Forward (Vf) Typ | 1.9V |
| Mounting Type | Through Hole |
| Lens Style/Size | Rectangle with Flat Top, 7.6mm x 2.5mm |
| Lens Type | Diffused, Tinted |
| Wavelength - Dominant | 626nm |
| Millicandela Rating | 2.1mcd |
| Wavelength - Peak | 635nm |
| Current - Test | 20mA |
| Height | 7.69mm |
| Other Names | 516-1277 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Dominant Wavelength | 626 nm |
| Forward Voltage | 2.6 V |
| LED Colours | Red |
| LED Material | GaAsP |
| Number of Pins | 2 |
| Package Size | 2.5 x 7.6mm |
| Forward Current | 20 mA |
| Emitting Color | Red |
| Lum Intensity | 2.1mcd |
| Power Dissipation | 135 W |
| Operating Temp Range | -40C to 100C |
| High Brightness | No |
| Shape Type | Rectangular |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Reverse Voltage | 5 V |
| Dominant Wave Length | 626 nm |
| Test Current (It) | 20 mA |
| Chip Material | GaAsP |
| Main Category | Standard LED |
| Rad Hardened | No |
| Product Depth (mm) | 2.54 mm |
| Product Height (mm) | 8 mm |
| Product Length (mm) | 7.62 mm |
| DELETED | Compliant |
| 電流 - 測試 | 20mA |
| 透鏡樣式/尺寸 | Rectangle with Flat Top, 7.6mm x 2.5mm |
| 高度 | 7.69mm |
| 視角 | 100° |
| 波長 - 峰值 | 635nm |
| 波長 - 主 | 626nm |
| 封裝/外殼 | Radial |
| 毫燭光等級 | 2.1mcd |
| 透鏡類型 | Diffused, Tinted |
| 裝配類型 | Through Hole |
| 顏色 | Red |
