HLMP-0800
LED Bi-Color Green/Red 568nm/635nm 3-Pin
廠商型號:
HLMP-0800
芯天下內部編號:
9-HLMP-0800
生產廠商:
avago technologies
描述:
LED Bi-Color Green/Red 568nm/635nm 3-Pin
產品類別:
Lighting|LEDs

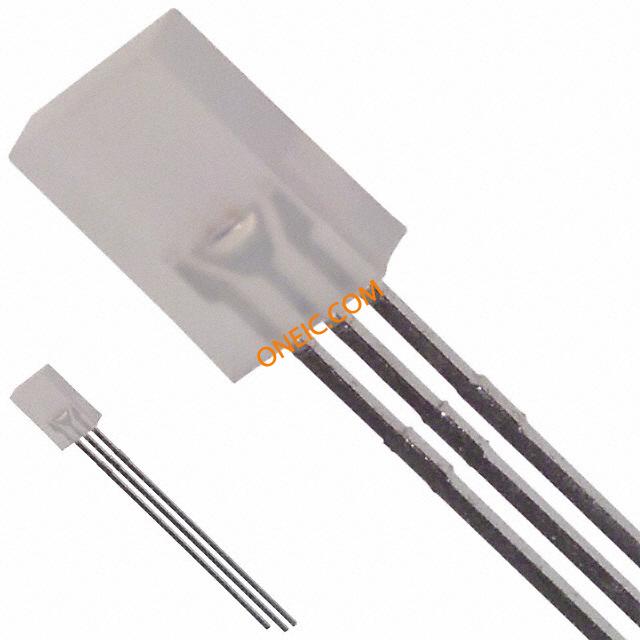

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pin Count | 3 |
| Type | Bi-Color |
| Number of LEDs | 2 |
| Intensity | 2.6(Min)|1.4(Min) mcd |
| Dominant Wavelength/Color Temperature | 570/626 nm |
| Peak Wavelength | 568/635 nm |
| Color | Green/Red |
| Lens Appearance | Diffused |
| Lens Shape Type | Rectangular |
| Viewing Angle | 100 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red, Green |
| Luminous Intensity | 2.6 mcd, 2.1 mcd |
| Wavelength/Color Temperature | 570 nm, 626 nm |
| Lens Color/Style | Diffused |

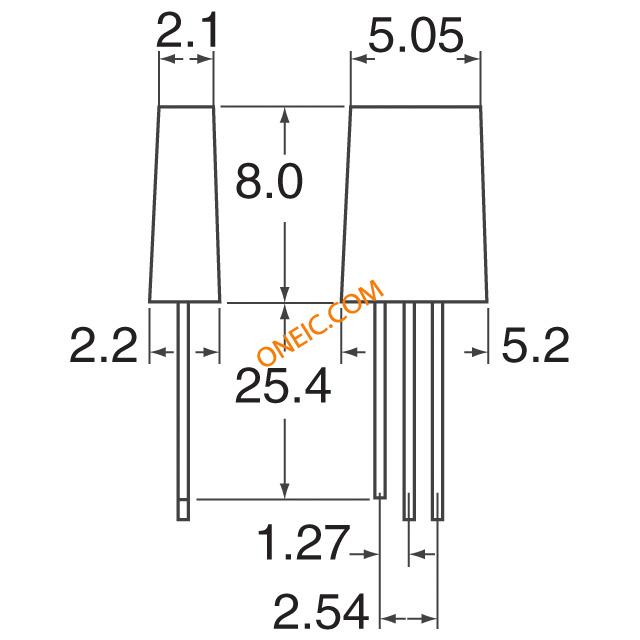

| LED Size | 2 mm x 5 mm |
| Packaging | Bulk |
| Lens Dimensions | 2 mm x 5 mm |
| Lens Shape | Rectangular |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 20 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 2000 |
| Reverse Voltage | 5(Min) |
| Dominant Wavelength | 570/626 |
| Viewing Angle | 100 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 3/2.6 |
| Peak Wavelength | 568/635 |
| Maximum Forward Current | 30 |
| High Brightness | No |
| Maximum Operating Temperature | 100 |
| Minimum Operating Temperature | -20 |
| Maximum Power Dissipation | 135 |
| Lens Dimensions | 5.18x2.23x8 |
| Voltage - Forward (Vf) Typ | 2.2V Green, 1.9V Red |
| Mounting Type | Through Hole |
| Lens Style/Size | Rectangle with Flat Top, 5mm x 2mm |
| Wavelength - Dominant | 570nm, 626nm |
| Millicandela Rating | 2.6mcd Green, 2.1mcd Red |
| Wavelength - Peak | 568nm, 635nm |
| Current - Test | 20mA |
| Height | 8.00mm |
| Lens Type | Diffused |
| Package/Case | Radial - 3 Leads |
| rohs | Lead free / RoHS Compliant |
| Dominant Wavelength | 570 nm, 626 nm |
| Forward Voltage | 2.6 V, 3 V |
| Number of Pins | 3 |
| Package Size | 2 x 5mm |
| Forward Current | 20 mA |
| Emitting Color | Yellow Green/Red |
| Lum Intensity | 2.6/1.4mcd |
| Power Dissipation | 135 W |
| Operating Temp Range | -20C to 100C |
| Shape Type | Rectangular |
| Number of Elements | 2 |
| Operating Temperature Classification | Commercial |
| Reverse Voltage | 5 V |
| Dominant Wave Length | 570/626 nm |
| Test Current (It) | 20 mA |
| Main Category | Standard LED |
| Rad Hardened | No |
| Product Depth (mm) | 2.23 mm |
| Product Height (mm) | 8 mm |
| Product Length (mm) | 5.18 mm |
| DELETED | Compliant |
| Bulb Size | :2mm x 5mm |
| LED Colour | :Red, Green |
| Luminous Intensity / Colour | :R 2.1mcd, G 2.6mcd |
| Forward Voltage / Colour | :R 1.9V, G 2.2V |
| Forward Current / Colour | :R 20mA, G 20mA |
| LED Mounting | :Through Hole |
| Wavelength / Colour | :R 626nm, G 570nm |
| SVHC | :No SVHC (20-Jun-2013) |
| Current If Luminous Intensity | :20mA |
| External Depth | :7.5mm |
| External Length / Height | :1.98mm |
| External Width | :5mm |
| Forward Voltage VF Max | :1.9V |
| LED Type | :Standard |
| Lead Cross-section Depth | :0.51mm |
| Lead Cross-section Width | :0.51mm |
| Lead Length | :25mm |
| Lead Spacing | :1.27mm |
| No. of Pins | :3 |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-20°C |
| Operating Temperature Range | :-20°C to +100°C |
| Opto Case Style | :Radial Leaded |
| PIV Max | :5V |
| Weight (kg) | 0.0003 |
| Tariff No. | 85414010 |
