HLMP-1301-E00A2
LED Uni-Color Red 635nm 2-Pin T-1
廠商型號:
HLMP-1301-E00A2
芯天下內部編號:
9-HLMP-1301-E00A2
生產廠商:
avago technologies
描述:
LED Uni-Color Red 635nm 2-Pin T-1
產品類別:
Lighting|LEDs

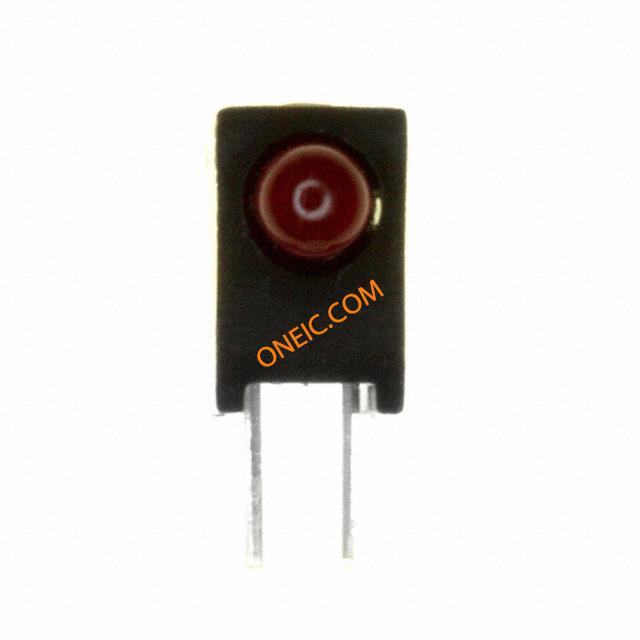

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 2T-1 |
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 3.4(Min) mcd |
| Dominant Wavelength/Color Temperature | 626 nm |
| Peak Wavelength | 635 nm |
| Color | Red |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 60 ° |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red |
| Luminous Intensity | 3.4 mcd |
| Wavelength/Color Temperature | 635 nm |
| Lens Color/Style | Diffused |
| Forward Current | 10 mA |
| Forward Voltage | 1.9 V |
| LED Size | T-1 |
| Packaging | Bulk |
| Lens Dimensions | 3 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 2000 |
| Dominant Wavelength | 626 |
| PCB | 2 |
| Maximum Forward Current | 30 |
| Viewing Angle | 60 |
| Reverse Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 2.4 |
| Peak Wavelength | 635 |
| Minimum Operating Temperature | -40 |
| LED Material | GaAsP |
| Lens Dimensions | 3.43x3.43x4.7 |
| Supplier Package | T-1 |
| Standard Package Name | T-1 |
| Maximum Operating Temperature | 100 |
| Package Diameter | 3.43(Max) |
| Package Height | 4.7(Max) |
| High Brightness | No |
| Lead Shape | Through Hole |
| Mounting Type | Through Hole, Right Angle |
| Lens Style/Size | Round with Domed Top, 3mm |
| Voltage Rating | 1.9V |
| Current | 10mA |
| Millicandela Rating | 3.4mcd |
| Wavelength - Peak | 635nm |
| Configuration | Single |
| Lens Type | Diffused, Tinted |
| rohs | Lead free / RoHS Compliant |
