HLMP-0401
LED Uni-Color Yellow 583nm 2-Pin
廠商型號:
HLMP-0401
芯天下內部編號:
9-HLMP-0401
生產廠商:
avago technologies
描述:
LED Uni-Color Yellow 583nm 2-Pin
產品類別:
Lighting|LEDs

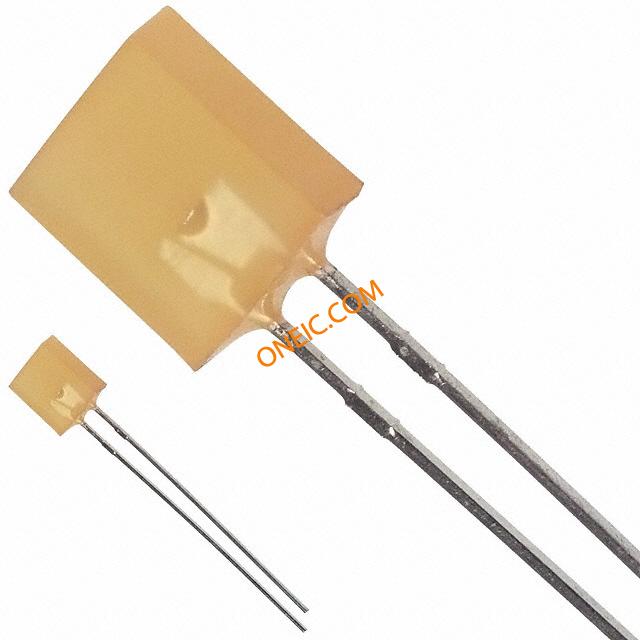

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格,。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 3.6(Min) mcd |
| Dominant Wavelength/Color Temperature | 585 nm |
| Peak Wavelength | 583 nm |
| Color | Yellow |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Rectangular |
| Viewing Angle | 100 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Yellow |
| Luminous Intensity | 3.6 mcd |
| Wavelength/Color Temperature | 585 nm |
| Lens Color/Style | Tinted, Diffused |
| LED Size | 2.5 mm x 7.6 mm |
| Packaging | Bulk |
| Lens Dimensions | 2.5 mm x 7.6 mm |
| Lens Shape | Rectangular |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 2000 |
| Dominant Wavelength | 585 |
| Maximum Forward Current | 20 |
| Maximum Power Dissipation | 85 |
| Viewing Angle | 100 |
| Reverse Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 2.6 |
| Peak Wavelength | 583 |
| Minimum Operating Temperature | -40 |
| Lens Dimensions | 7.62x2.54x8 |
| Maximum Operating Temperature | 100 |
| LED Material | GaAsP |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 2.1V |
| Mounting Type | Through Hole |
| Lens Style/Size | Rectangle with Flat Top, 7.6mm x 2.5mm |
| Lens Type | Diffused, Tinted |
| Wavelength - Dominant | 585nm |
| Millicandela Rating | 3.6mcd |
| Wavelength - Peak | 583nm |
| Current - Test | 20mA |
| Height | 7.69mm |
| Other Names | 516-1278 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Dominant Wavelength | 585 nm |
| Forward Voltage | 2.6 V |
| LED Colours | Yellow |
| Number of Pins | 2 |
| Package Size | 2.5 x 7.6mm |
| Forward Current | 20 mA |
| Emitting Color | Amber |
| Lum Intensity | 3.6mcd |
| Power Dissipation | 85 W |
| Operating Temp Range | -40C to 100C |
| Shape Type | Rectangular |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Reverse Voltage | 5 V |
| Dominant Wave Length | 585 nm |
| Test Current (It) | 20 mA |
| Chip Material | GaAsP |
| Main Category | Standard LED |
| Rad Hardened | No |
| Product Depth (mm) | 2.54 mm |
| Product Height (mm) | 8 mm |
| Product Length (mm) | 7.62 mm |
| DELETED | Compliant |
| Bulb Size | :2.5mm x 7.6mm |
| LED Colour | :Yellow |
| Forward Current If | :20mA |
| LED Mounting | :Through Hole |
| Wavelength Typ | :583nm |
| SVHC | :No SVHC (20-Jun-2013) |
| Current If Luminous Intensity | :20mA |
| External Depth | :8mm |
| External Length / Height | :2.54mm |
| External Width | :7.49mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :2.1V |
| LED / Lamp Size | :7.5 x 2.5mm |
| LED Colour Presentation | :Tinted Diffused |
| LED Type | :Standard |
| Lead Cross-section Depth | :0.45mm |
| Lead Cross-section Width | :0.45mm |
| Lead Length | :29mm |
| Lead Spacing | :2.54mm |
| Luminous Intensity @ If Min | :3.6mcd |
| Luminous Intensity Typ | :5mcd |
| No. of Pins | :2 |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Range | :-55°C to +100°C |
| Opto Case Style | :Radial Leaded |
| PIV Max | :5V |
| Peak Forward Current | :20mA |
| Voltage Vf Typ | :2.1V |
| Weight (kg) | 0.001 |
| Tariff No. | 85414010 |
