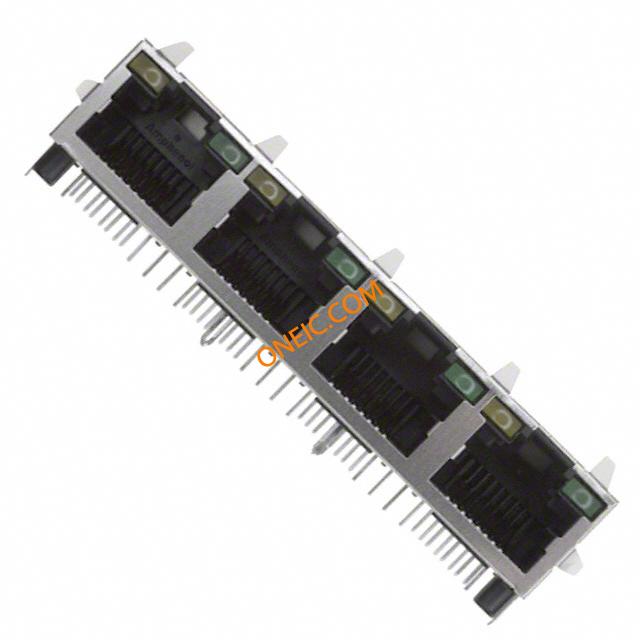

RJHSE-5381-04

モジュラーコネクタ/Ethernetコネクタ R/A RJ45 SHEILDED 4 PORT Y/G LEDS

Thumbnail RJHSE-5381-04 Thumbnail RJHSE-5381-04 Thumbnail RJHSE-5381-04 Thumbnail RJHSE-5381-04
廠商型號: RJHSE-5381-04
芯天下內部編號: 36-RJHSE-5381-04
生產廠商:
Amphenol Commercial Products Amphenol Commercial Products
描述: モジュラーコネクタ/Ethernetコネクタ R/A RJ45 SHEILDED 4 PORT Y/G LEDS
產品類別: Connectors, Interconnects|Modular Connectors - Jacks|RJHSE
客戶編號:
規(guī)格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規(guī)格。

庫存與訂購

庫存: 0
庫存獲取中,，請稍候....

產品參數

參數類型 參數值
Ratings Cat5
Tab Direction Up
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Rows 1
Termination Solder
Standard Package 40
Connector Type Jack
Contact Finish Gold
Packaging Tray
Number of Ports 4
Operating Temperature -55°C ~ 85°C
LED Color Yellow - Green
Features Board Lock
Orientation 90° Angle (Right)
Contact Finish Thickness 50μin (1.27μm)
Housing Material Thermoplastic
Other Names RJHSE538104
Contact Material Phosphor Bronze
Factory Pack Quantity 40
Current Rating 1.5 A
Termination Style Through Hole
Part # Aliases 84K8176
Product Category Modular Connectors / Ethernet Connectors
Voltage Rating 125 V
Contact Plating Gold
Flammability Rating UL 94 V-0
Operating Temperature Range - 20 C to + 85 C
Gender Female
RoHS RoHS Compliant
Mounting Angle Right
USOC Codes RJ45
Color Black
Series RJHSE
Performance Category Cat 5
Pitch 1.27 mm
No. of Contacts :8
No. of Positions :8
No. of Ports :4
LAN Category :Cat5
Contact Termination :Through Hole Right Angle
Weight (kg) 0.01
Tariff No. 85369010
